-25%

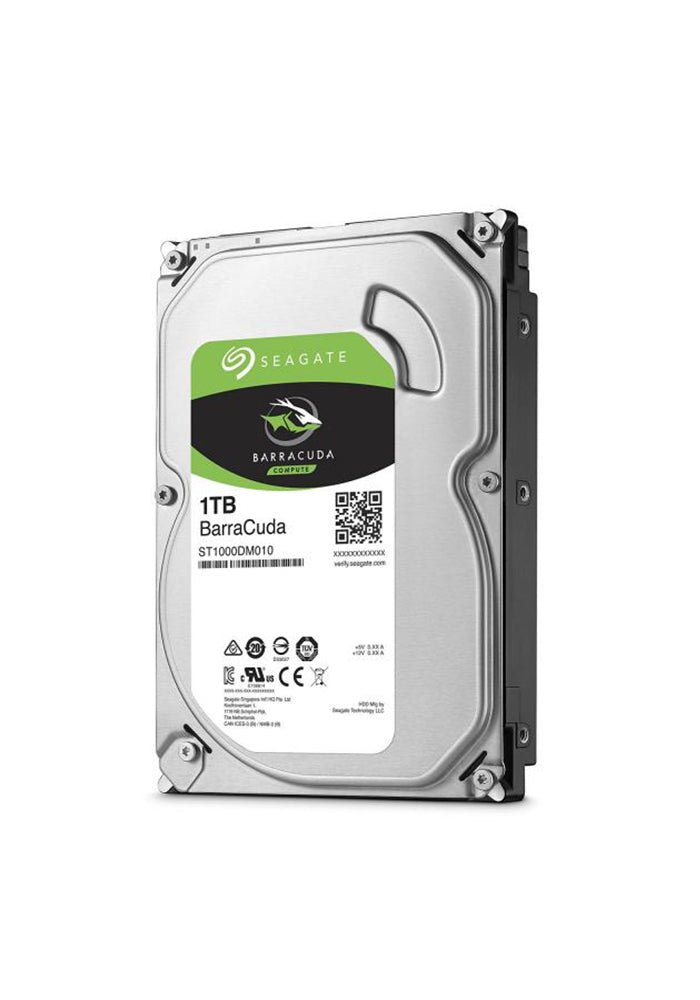

Seagate 1TB Barracuda Internal HDD


4,499.00 6,000.00

  • CAPACITY 1TB
  • SERIES BARRACUDA
  • FORM FACTOR 3.5 INCH
  • RPM 7200 RPM

Specification

Specifications

1TB

Standard Model Numbers

ST1000DM010

Bytes per Sector

4096

Heads/Disks

2/1

Performance

Interface

SATA 6Gb/s

SATA Transfer Rates Supported (Gb/s)

6.0/3.0/1.5

Max Sustained Data Rate, OD Read (MB/s)

210

Cache, Multisegmented (MB)

64

Reliability/Data Integrity

Nonrecoverable Read Errors per Bits Read, Max

1 per 10E14

Power-On Hours (per year)

2400

Workload Rate Limit (TB/year)

55

Power Management

Startup Power (A)

2.0

Operating Mode, Typical (W)

5.3

Idle Average (W)

4.6

Standby Mode/Sleep Mode, Typical (W)

0.94/0.94

Voltage Tolerance, Including Noise (5V)

±5%

Voltage Tolerance, Including Noise (12V)

±10%

Environmental

Operating (ambient, min)

0

Operating (drive case, max)

60

Nonoperating (ambient)

–40 to 70

Halogen Free

Yes

RoHS Compliance

Yes

Physical

Height (mm/in, max)

19.99/0.787

Width (mm/in, max)

101.6/4.0

Depth (mm/in, max)

146.99/5.787

Weight (g/lb, typical)

400/0.88

Warranty

2 Years

Note

***Features, Price and Specifications are subject to change without notice.



Features

  • 7200 RPM spindle speed.
  • Full-track multiple-sector transfer capability without local processor intervention.
  • High instantaneous (burst) data-transfer rates (up to 600MB per second).
  • Native Command Queuing with command ordering to increase performance in demanding applications.
  • Quiet operation.
  • Seagate AcuTrac™ servo technology delivers dependable performance, even with hard drive track widths of only 75 nanometers.
  • Seagate OptiCache™ technology boosts overall performance by as much as 45% over the previous generation.
  • Seagate SmartAlign™ technology provides a simple, transparent migration to Advanced Format 4K sectors
  • SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
  • State-of-the-art cache and on-the-fly error-correction algorithms.
  • Support for S.M.A.R.T. drive monitoring and reporting.
  • Supports latching SATA cables and connectors.
  • TGMR recording technology provides the drives with increased areal density.
  • Worldwide Name (WWN) capability uniquely identifies the drive.

SKU: ST1000DM010 Category: Tags: , , ,

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Seagate 1TB Barracuda Internal HDD”

There are no reviews yet.
