-46%
,

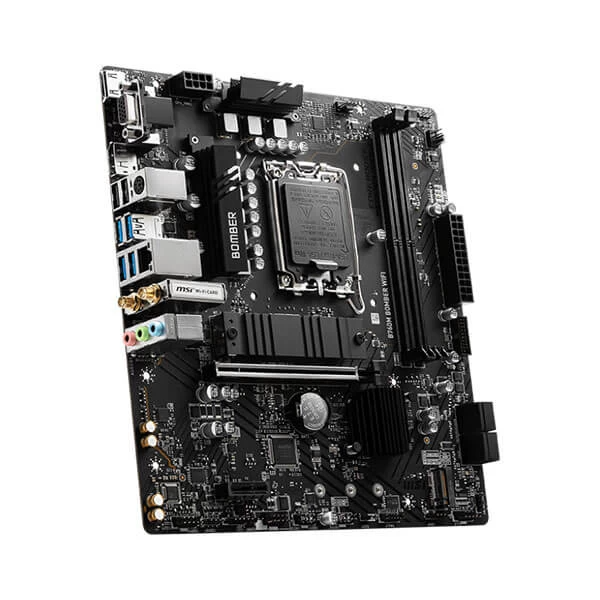

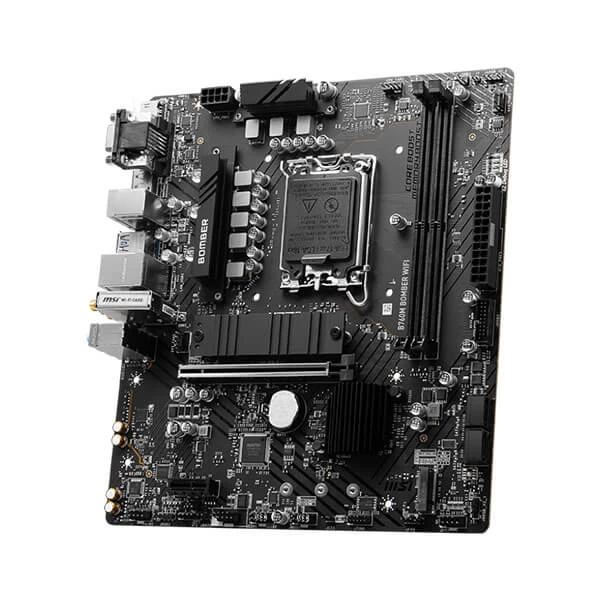

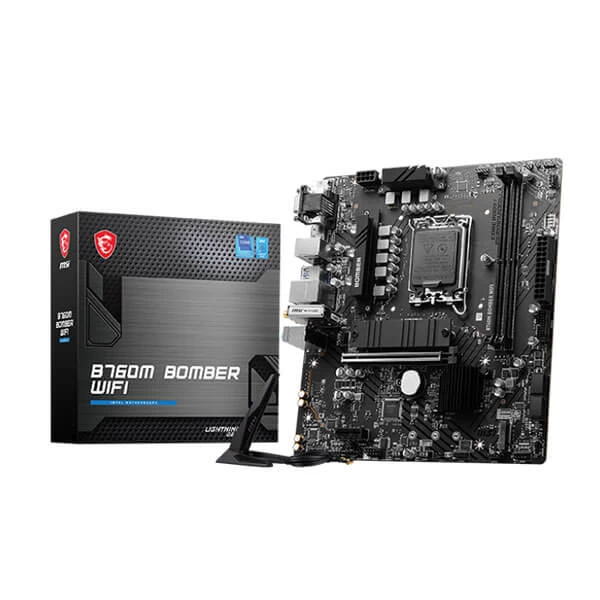

MSI B760M Bomber WIFI Motherboard


11,800.00 21,999.00

MSI B760M Bomber WIFI motherboard support Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket and Dual Channel DDR5-6400MHz Memory.

Features:

  • Supports 12th/13th Gen Intel Core, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5-6400+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Specification:

Model B760M BOMBER WIFI
Chipset INTEL B760
CPU SUPPORT Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Memory 2x DDR5, Maximum Memory Capacity 96GB Memory

DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)

Max. overclocking frequency:

  • 1DPC 1R Max speed up to 6400+ MHz
  • 1DPC 2R Max speed up to 5600+ MHz
Onboard Graphics 1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz
1x D-Sub
Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
EXPANSION SLOT 1x PCI-E x16
1x PCI-E x1
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Storage 2x M.2 (Qty)
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 2x USB 2.0
4x USB 2.0
4x USB 3.2 Gen1 Type A
2x USB 3.2 Gen1 Type A
LAN Realtek RTL8125B 2.5Gbps LAN
WIRELESS / BLUETOOTH Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3, FIPS, FISMA

Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O
  • 1x Power Connector(ATX_PWR)
  • 1x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 2x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0
  • 2x USB 3.2 Gen1 Type A
LED FEATURE 4x EZ Debug LED

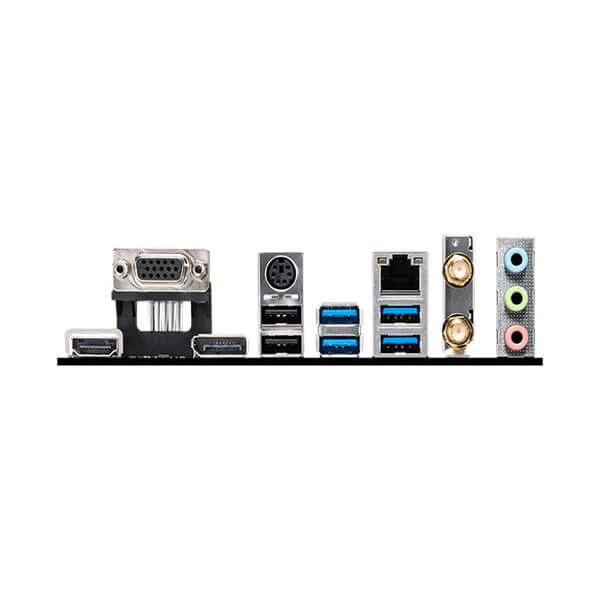

BACK PANEL PORTS
  • HDMI™
  • VGA
  • DisplayPort
  • Keyboard / Mouse
  • 2.5G LAN
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • USB 2.0
  • USB 3.2 Gen 1 5Gbps (Type-A)
OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
PCB Dimension (W × L) mATX
220mmx243.84mm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
  • PLATFORMINTEL
  • SOCKETLGA1700
  • ChipsetB760
  • SUPPORTED MEMORY TYPEDDR5
  • MAX MEMORY SUPPORT96 GB
  • FORM FACTORM-ATX
SKU: B760M-BOMBER-WIFI Categories: , Tags: , ,
