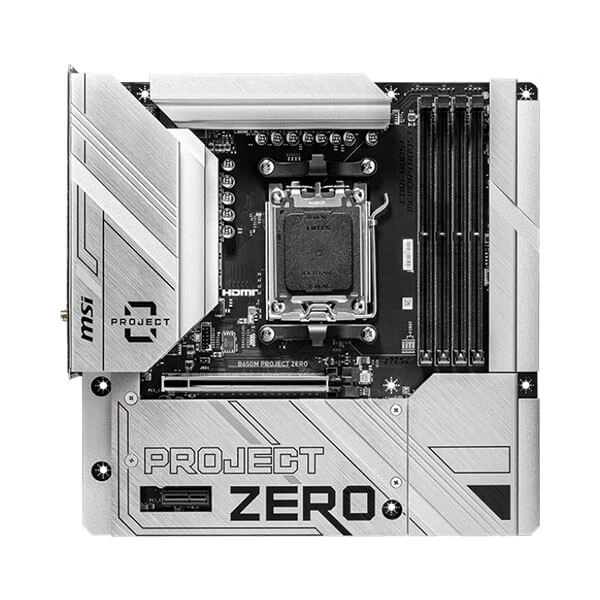

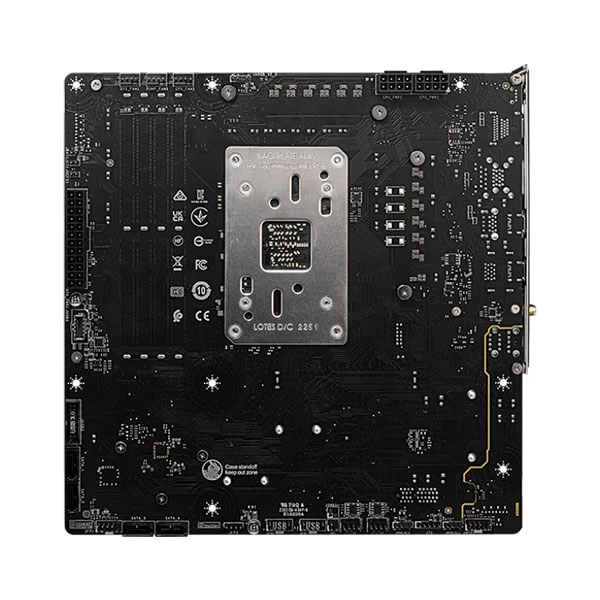

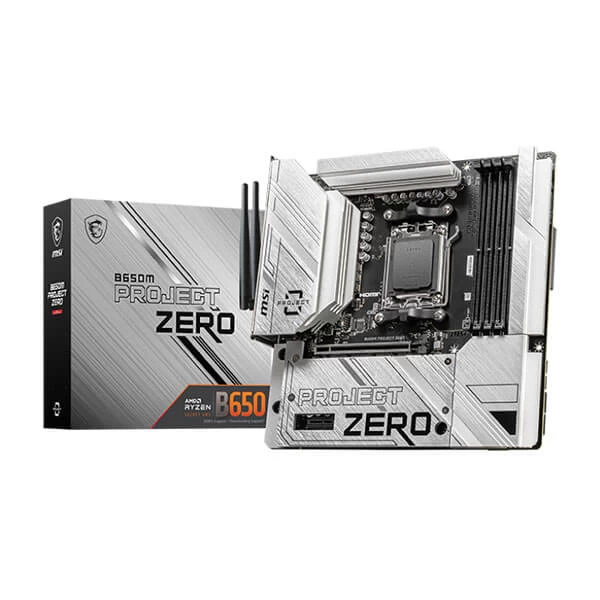

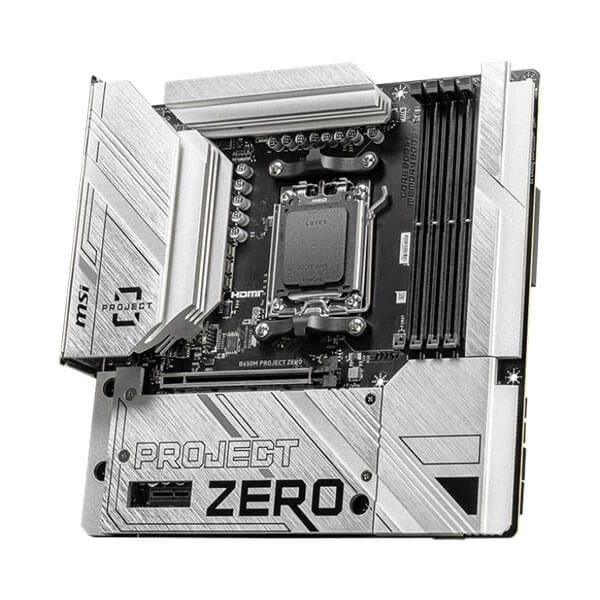

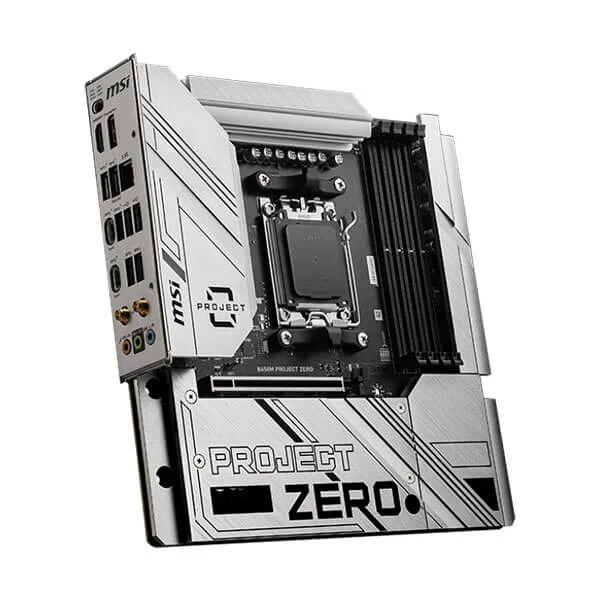

MSI B650M Project Zero (Wi-Fi) Motherboard


23,250.00 35,999.00

MSI B650M Project Zero Motherboard supports AMD Ryzen 7000 Series Desktop Processors and supports DDR5 Memory, up to 7600+(OC) MHz. 2.5G LAN and AMD Wi-Fi 6E Solution

Features:

  • Supports AMD Ryzen™ 7000 Series Desktop Processors
  • Supports DDR5 Memory, up to 7600+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • Audio Boost: Reward your ears with studio grade sound

Specifications:

Model B650M PROJECT ZERO
Chipset AMD B650
CPU Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7600+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz
Onboard Graphics
  • 1x HDMI™

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz

  • 1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
* SATA_A1_A2 do not support RAID function.
USB
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 2x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
  • 3x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
  • 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Realtek® RTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Internal IO
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 3x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
  • 1x USB 3.2 Gen2 Type C ports
LED FEATURE 4x EZ Debug LED

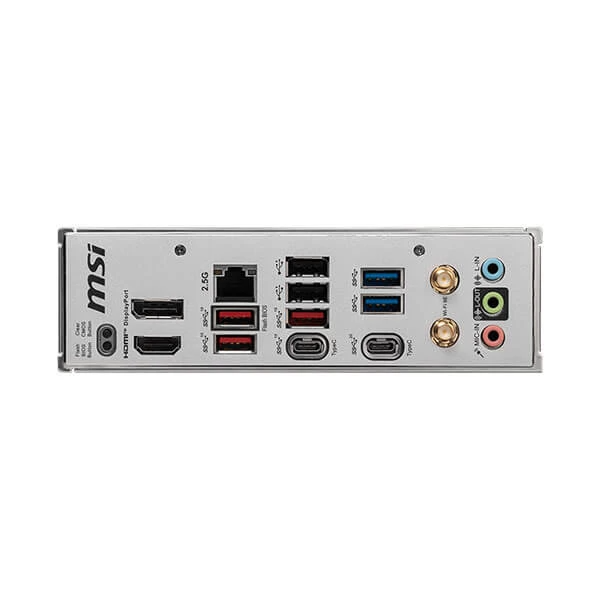

BACK PANEL PORTS
  • DisplayPort
  • 2.5G LAN
  • USB 2.0
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • Wi-Fi / Bluetooth
  • Audio connectors
  • Flash BIOS Button
  • Clear CMOS Button
  • HDMI™
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 2 10Gbps (Type-C)
  • USB 3.2 Gen 2×2 20Gbps (Type-C)
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info mATX
243.84mmx243.84mm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
  • PLATFORMAMD
  • SOCKETAM5
  • ChipsetB650
  • SUPPORTED MEMORY TYPEDDR5
  • MAX MEMORY SUPPORT128 GB
  • FORM FACTORM-ATX
