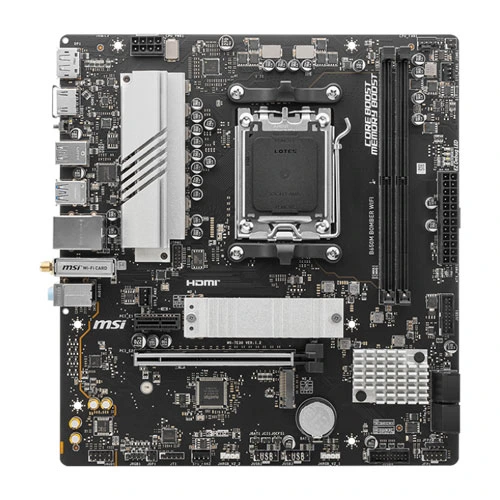

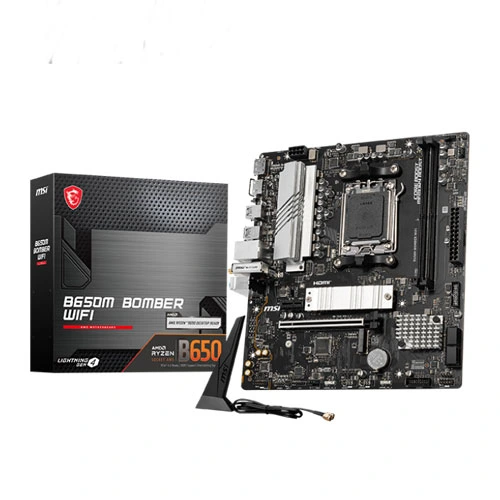

MSI B650M Bomber WIFI M-ATX Motherboard

Motherboard
Platform	AMD
Socket	AM5
Cpu Type	Ryzen 9000,Ryzen 8000,Ryzen 7000
Chipset	B650
Memory Speed	up to 7800+
Max Memory Support	128 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Supports non-ECC, un-buffered memory Supports AMD EXPO™
Graphics Port	1x HDMI,1x DisplayPort
Expansion Slots	1x PCI-E x16 slot Supports x16/x1 • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
Wireless Networking	WiFi 6E,Bluetooth 5.3

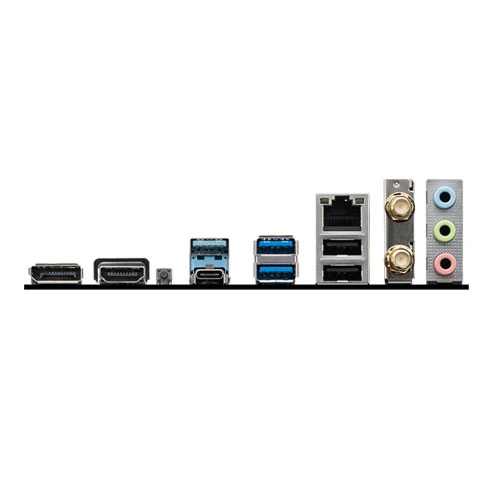

Back Panel I/O Ports	DisplayPort HDMI™ Flash BIOS Button USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio connectors USB 5Gbps Type-C USB 2.0
Internal I/O Connector	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports
Form Factor	Micro-ATX
Warranty	3 Years
Note	Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.

Features:

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
• 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Latest DDR5 MemoryA huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.Wi-Fi 6EThe latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400MbpsM.2 Shield FROZRStrengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.Frozr AI CoolingDetect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.Lightning Gen4 SolutionThe latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
