Features:
- Open the left and right side tempered glass panels by the aluminum door handles.
- The top, front, and bottom of the case can each fit a 360mm radiator.
- The design of the storage trays has been revised to include modularity. Each unused HDD/SSD tray can be individually
removed. - New cable management design: I. 2 x Magnetic hinged back side cable covers, easier to open and still removable for unrestricted access. II. 3+5 velcro channel straps : 4 small straps help route the CPU and fan cables, and another small one for shorter 24 pin cables, while 3 large ones are for the remainder of the cables. III. Sliding front side cable cover (also can mount distro plate) By loosening a screw behind the motherboard tray, the bar can slide to adapt for wider motherboards and let the user customize the curve of their cables passing through.
Lancool III includes 3 x 140 PWM fans at the front and 1 x 140 PWM fan at the rear
Exterior design

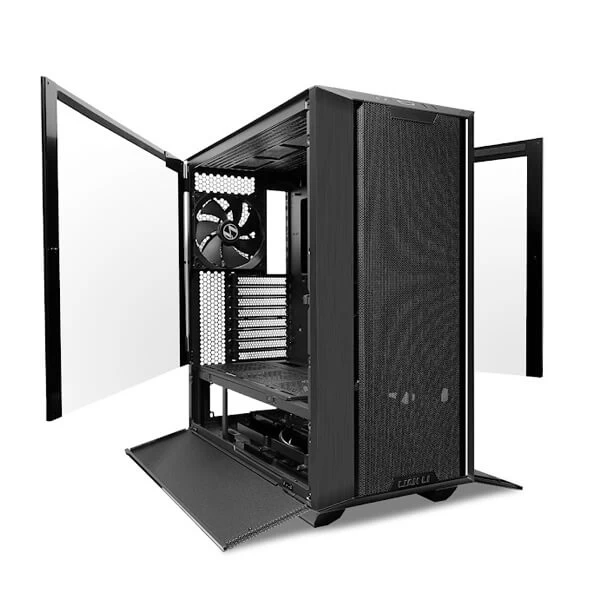

Lancool III has a fine mesh top, front and lower sides panels. Opening the left and right tempered glass panels is easy with the front aluminum door handles.
3 x 360 Radiator
In the main chamber, the top, front, and bottom of the case can each fit a 360mm radiator.
Upgrade Cable management
Improved cable management includes the magnetic hinged rear cable covers, which are easier to open and removable for full access.
Eight velcro-channel straps are located in key points, with 4 around the rear CPU cutout for cable routing, a small one at the bottom for short 24-pin cables, and 3 large dual-layer straps are at the front.
Modular Storages Trays
The design of the storage trays has been revised to include modularity. Each unused HDD/SSD tray can be individually removed.
Specification:
MODEL | LANCOOL 3-X |
Color | Black |
DIMENSIONS | (D) 526 x (W) 238 x (H) 523 mm |
Material | Aluminum 4.0mm tempered glass (both sides) |
Motherboard Support | EATX(under 280mm)/ATX/MICRO-ATX/MINI-ITX |
Expansion Slot | 8 |
Storage | Behind MB Tray: 2 X 2.5ʹʹ SSD Hard Drive Cage: 4 X 3.5ʹʹ HDD/2.5ʹʹ SSD Behind the Right-side Shroud Panel: 3 X 2.5ʹʹ SSD Above PSU Chamber:3 X 2.5ʹʹ SSD |
GPU Length Clearance | 420mm(Max) |
CPU Cooler Height Clearance | 185mm(Max) |
PSU | ATX(under 220mm) |
Radiator Support | Front / Top / Bottom : 360mm |
Fan Support | Front (multi-way bracket): 3 X 120mm or 3 X 140mm Above PSU Chamber: 3 X 120mm or 2 X 140mm Top: 3 X 120mm or 3 X 140mm Rear: 1 X 120mm or 1 X 140mm |
Included Fan | Front: 3 X 140mm PWM Fans Rear: 1 X 140mm PWM fan |
Dust Filter | 1 x Bottom |
I/O Ports | Power Button, Reset Button, USB 3.0 * 2, Audio *1 |
Warranty | 1 Year |
Note | *** Features, Price, Specifications are subject to change without notice. |
- SERIESLANCOOL SERIES
- TYPEMID TOWER
- 3.5″ BAYS4
- 2.5″ BAYS8
- EXPANSION SLOTS8
- MAX RADIATOR SUPPORT360
- MAX FAN SUPPORT10
- COLORBLACK
- SIDE PANELTRANSPARENT
- MOTHERBOARD SUPPORTE-ATX
- WARRANTY1 Year
- NOTE****** Features, Price, Specifications are subject to change without notice.
