- Series Core i7 (12th Gen)
- CORES12 Cores
- THREADS 20 Threads
- Socket LGA 1700
- SPEED 2.70 GHz
- SPEED (TURBO)5.00 GHz
- CACHE 25 MB
- MAX MEMORY SUPPORT 128 GB
- INTEGRATED GRAPHICS Intel UHD 770
- INCLUDED CPU COOLER No
- UNLOCKED Yes
- TDP125W
- WARRANTY*3 Years
Specifications:
Essentials | |
Product Collection | 12th Generation Intel® Core™ i7 Processors |
Code Name | Products formerly Alder Lake |
Vertical Segment | Desktop |

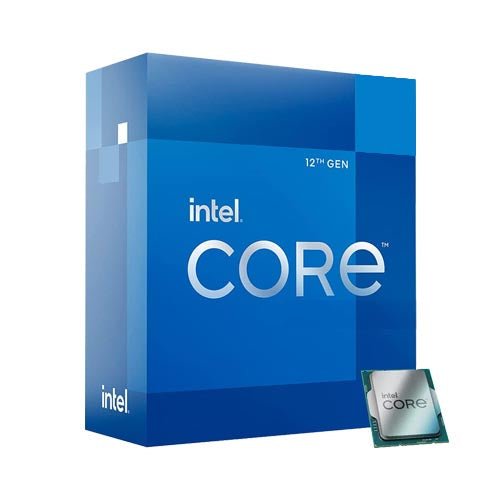

Processor Number | i7-12700K |
Status | Launched |
Lithography | Intel 7 |
Use Conditions | PC/Client/Tablet |
CPU Specifications | |
Total Cores | 12 |
# of Performance-cores | 8 |
# of Efficient-cores | 4 |
Total Threads | 20 |
Max Turbo Frequency | 5.00 GHz |
Intel® Turbo Boost Max Technology 3.0 Frequency | 5.00 GHz |
Performance-core Max Turbo Frequency | 4.90 GHz |
Efficient-core Max Turbo Frequency | 3.80 GHz |
Performance-core Base Frequency | 3.60 GHz |
Efficient-core Base Frequency | 2.70 GHz |
Cache | 25 MB Intel® Smart Cache |
Total L2 Cache | 12 MB |
Processor Base Power | 125 W |
Maximum Turbo Power | 190 W |
Supplemental Information | |
Embedded Options Available | No |
Memory Specifications | |
Max Memory Size (dependent on memory type) | 128 GB |
Memory Types |
Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
Max # of Memory Channels | 2 |
Max Memory Bandwidth | 76.8 GB/s |
Processor Graphics | |
Processor Graphics | Intel® UHD Graphics 770 |
Graphics Base Frequency | 300 MHz |
Graphics Max Dynamic Frequency | 1.50 GHz |
Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
Execution Units | 32 |
Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
Max Resolution (eDP – Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
DirectX* Support | 12 |
OpenGL* Support | 4.5 |
Multi-Format Codec Engines | 2 |
Intel® Quick Sync Video | Yes |
Intel® Clear Video HD Technology | Yes |
# of Displays Supported ‡ | 4 |
Device ID | 0x4680 |
OpenCL* Support | 2.1 |
Expansion Options | |
Direct Media Interface (DMI) Revision | 4.0 |
Max # of DMI Lanes | 8 |
Scalability | 1S Only |
PCI Express Revision | 5.0 and 4.0 |
PCI Express Configurations ‡ | Up to 1×16+4, 2×8+4 |
Max # of PCI Express Lanes | 20 |
Package Specifications | |
Sockets Supported | FCLGA1700 |
Max CPU Configuration | 1 |
Thermal Solution Specification | PCG 2020A |
TJUNCTION | 100°C |
Package Size | 45.0 mm x 37.5 mm |
Advanced Technologies | |
Intel® Gaussian & Neural Accelerator | 3.0 |
Intel® Thread Director | Yes |
Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
Intel® Optane™ Memory Supported | Yes |
Intel® Speed Shift Technology | Yes |
Intel® Turbo Boost Max Technology 3.0 | Yes |
Intel® Turbo Boost Technology | 2.0 |
Intel® Hyper-Threading Technology | Yes |
Intel® Virtualization Technology (VT-x) | Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel® VT-x with Extended Page Tables (EPT) | Yes |
Intel® 64 | Yes |
Instruction Set | 64-bit |
Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
Idle States | Yes |
Enhanced Intel SpeedStep® Technology | Yes |
Thermal Monitoring Technologies | Yes |
Intel® Volume Management Device (VMD) | Yes |
Security & Reliability | |
Intel® AES New Instruction | Yes |
Secure Key | Yes |
Intel® OS Guard | Yes |
Execute Disable Bit | Yes |
Intel® Boot Guard | Yes |
Mode-based Execute Control (MBE) | Yes |
Intel® Control-Flow Enforcement Technology | Yes |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
