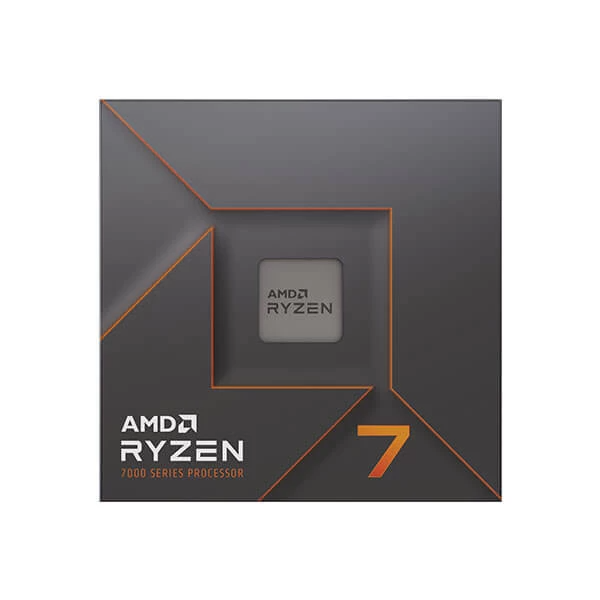

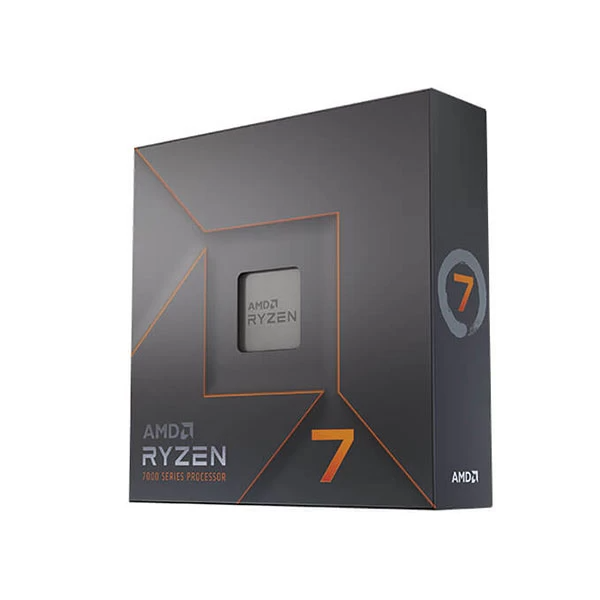

AMD Ryzen 7 7700X Processor With AMD Radeon Graphics


30,299.00 60,000.00

Specification:

Platform Desktop
Market Segment Enthusiast Desktop
Product Family AMD Ryzen™ Processors
Product Line AMD Ryzen™ 7 Desktop Processors
AMD PRO Technologies No
Consumer Use Yes
Regional Availability Global
Former Codename “Raphael AM5”
Architecture “Zen 4”
of CPU Cores 8
Multithreading (SMT) Yes
of Threads 16
Max. Boost Clock Up to 5.4GHz
Base Clock 4.5GHz
L1 Cache 512KB
L2 Cache 8MB
L3 Cache 32MB
Default TDP 105W
Processor Technology for I/O Die TSMC 6nm FinFET
CPU Compute Die (CCD) Size 71mm²
I/O Die (IOD) Size 122mm²
Package Die Count 2
Unlocked for Overclocking Yes
AMD EXPO™ Memory Overclocking Technology Yes
Precision Boost Overdrive Yes
Curve Optimizer Voltage Offsets Yes
AMD Ryzen™ Master Support Yes
CPU Socket AM5
Supporting Chipsets
  • X670E
  • X670
  • B650E
  • B650
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB) Not included
Max. Operating Temperature (Tjmax) 95°C
OS Support
  • Windows 11 – 64-Bit Edition
  • Windows 10 – 64-Bit Edition
  • RHEL x86 64-Bit
  • Ubuntu x86 64-Bit
Connectivity
USB Type-C® Support Yes
Native USB 3.2 Gen 2 (10Gbps) Ports 4
Native USB 3.2 Gen 1 (5Gbps) Ports 0
Native USB 2.0 (480Mbps) Ports 1
Native SATA Ports 0
Native PCIe® Lanes (Total/Usable) 28/24
Additional Usable PCIe Lanes from Motherboard

AMD X670E 12x Gen4

AMD X670 12x Gen4

AMD B650E 8x Gen4

AMD B650 8x Gen4

NVMe Support Boot, RAID0, RAID1, RAID10
Memory Channels 2
Max. Memory 128GB
System Memory Subtype UDIMM
Max Memory Speed

1x1R 5200 MT/s

1x2R 5200 MT/s

2x1R 3600 MT/s

2x2R 3600 MT/s

ECC Support Yes (Requires mobo support)
Graphics Capabilities
Integrated Graphics Yes
Graphics Model AMD Radeon™ Graphics
Graphics Core Count 2
Graphics Frequency 2200 MHz
GPU Base 400 MHz
USB Type-C® DisplayPort™ Alternate Mode Yes
Product IDs
Product ID Boxed 100-100000591WOF
Product ID Tray 100-000000591
Key Features
Supported Technologies
  • AMD EXPO™ Technology
  • AMD Ryzen™ Technologies
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
  • Series Ryzen 7
  • CORES 8 Cores
  • THREADS 16 Threads
  • Socket AM5
  • SPEED4.5GHz
  • SPEED (TURBO)5.4GHz
  • CACHE 40 MB
  • MAX MEMORY SUPPORT 128 GB
  • INTEGRATED GRAPHICS Yes
  • INCLUDED CPU COOLER No
  • UNLOCKED Yes
  • TDP105W
  • WARRANTY*3 Years
SKU: 100-100000591WOF Categories: , Tags: , ,
