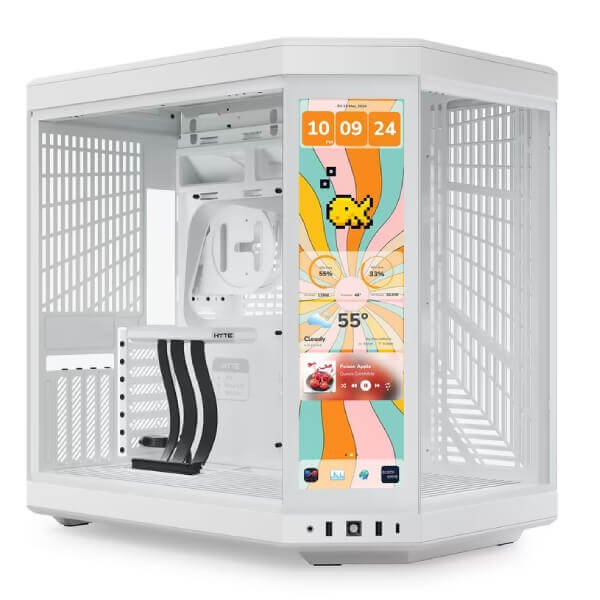

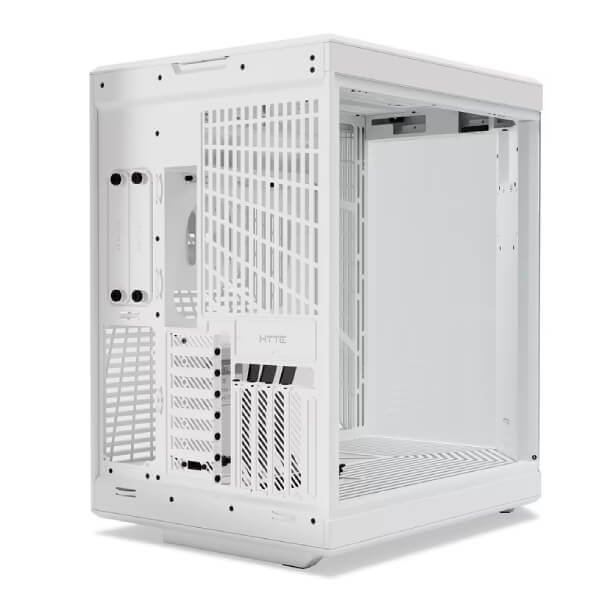

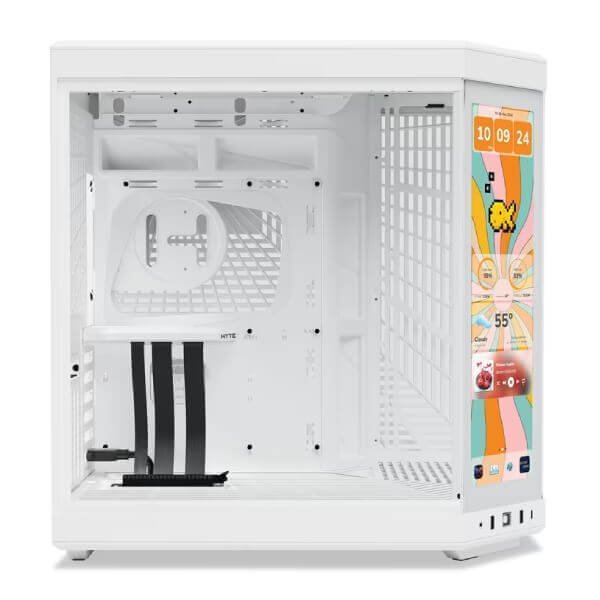

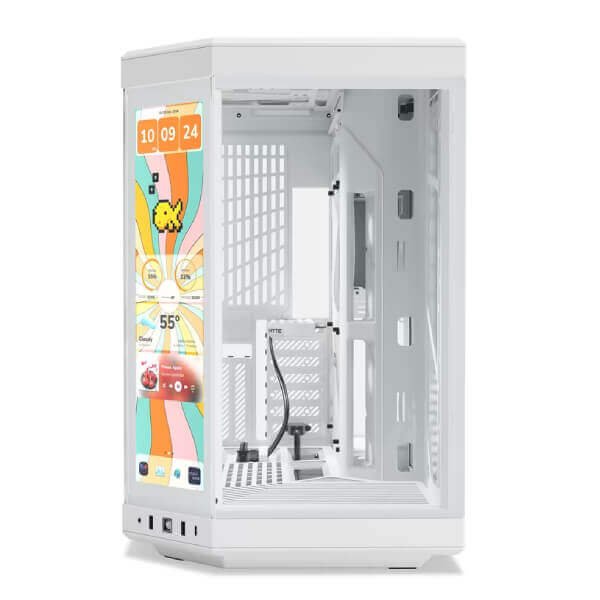

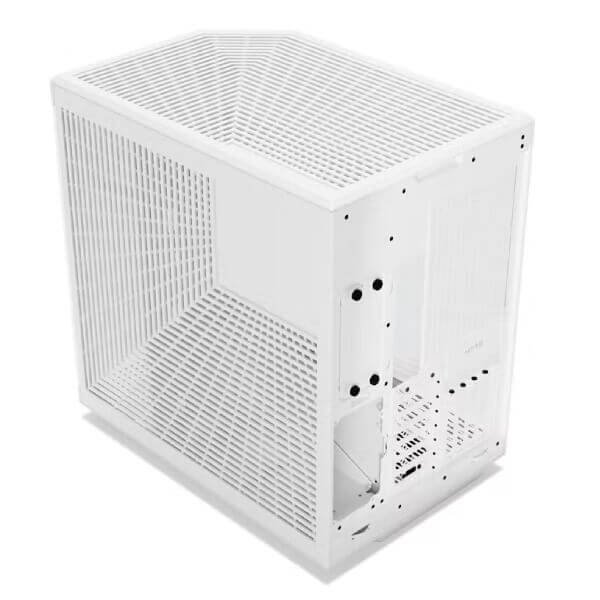

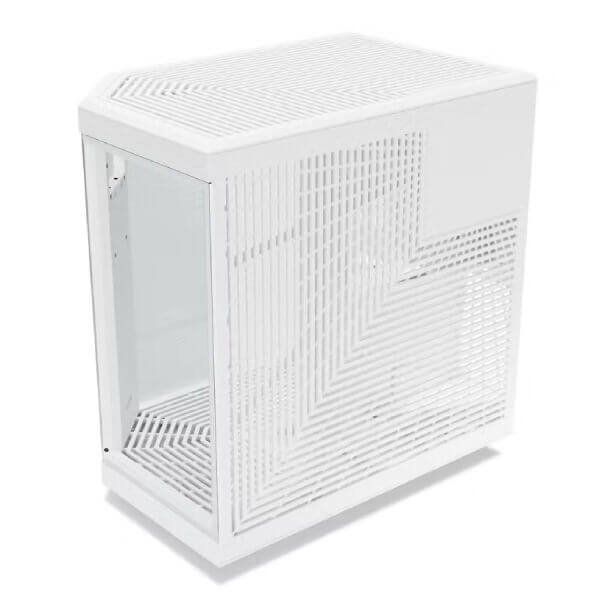

Hyte Y70 Touch Infinite White E-ATX Mid Tower Case

Cabinet
Cabinet Size	MID-TOWER
Color	White
Material	Tempered Glass, Steel, ABS
Expansion Slots	7+4
Motherboard Size	E-ATX,ATX,M-ATX,M-ITX
Max CPU Cooler Height	180mm
Max PSU Length	235mm
Max Gpu Length	422mm
Max 3.5″ HDD	2
Max 2.5″ SSD	4
Dust Filters	Top, Side, Bottom
Max Fan Support	10
Radiator Support	360mm,280mm,240mm,140mm,120mm
Front I/O Panel	USB Type-C, USB 3.2, Audio/Mic Jack
Warranty	3 Years
Note***	Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.

 Features:Y70 is an upgraded dual chamber ATX mid tower modern aesthetic case that delivers next gen gaming experiences with massive 4 slot vertical graphics and unlocks maximum performance via ginormous cooling capacity.Mesmerizing 14.9″ Integrated IPS TouchscreenAt a 682 x 2560 (2.5K) resolution and 60Hz refresh rate, this capacitive IPS touchscreen delivers an insanely crisp and buttery smooth visual experience with 10-point multi-touch capability, unlocking a magnitude of possibilities and extensive screen customization powered by HYTE Nexus software. Our bigger, brighter, 3rd generation panel features a larger 14.9″ display with a 43% higher brightness for a more immersive user experience. All in a single package integrated into the case chassis structure, pioneering meaningful digital interaction with the best display ever in a case.Massive 4 Slot Vertical GraphicsY70 grows GPU support to 4 slots with additional airflow space between the edge of the card and the glass. This means you can fit even the largest and most powerful of graphics cards into your build with ease. Additionally, the cold floor cooling down below can house up to a trio of 120mm or duo of 140mm fans up to 32mm thick to direct fresh airflow straight into the GPU.Included Luxury PCIE 4.0 Riser CableIncluded with the case is a luxury PCIE 4.0 x 16 riser with a color-matched canopy for uninterrupted visual flow that’ll make for a painless GPU installation and build process. It also allows for a plethora of half-height PCIE cards to sit behind the throne of the vertical graphics.Ginormous Cooling CapacityA spacious interior makes room for up to a 360mm long & 125mm thick radiator on the side and adjustable top bracket that can house another 360mm radiator up to 68mm thick up above. Working together with the cold floor cooling at the bottom and spot for an additional fan at the rear of the case, Y70 has a total capacity of 10 fans in a fully populated chassis. With over 180mm of clearance to the side glass, air and water cooling enthusiasts alike will appreciate the flexibility afforded to them by the chassis to create the most robust cooling configurations possible.Unified Modern AestheticWith 4 unique colorways, Y70 puts your build front and center with a beautifully crafted 3-piece panoramic glass which serves as a window into the heart of your PC. The dual chamber interior layout keeps the front looking great while giving you plenty of space to manage cables in the back, especially with the help of our seamless L-shaped molded rubber grommet, meticulously placed cable routing channels & tie-down points, and reusable Velcro straps. All easily accessible with tool-less top and side panels alongside floating storage sleds that eject from the rear of the case for intuitive drive maintenance.Type: Dual Chamber Mid-Tower ATX CaseExterior Dimensions: 470 x 320 x 470 mmVolume (L): 70.7Motherboard Sizes: ITX, mATX, ATX, EATXExpansion Slots: 7 half + 4 full heightRiser Cable Included: Yes, PCIE 4.0 x 16I/O: 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 1x 3.5mm Audio/Mic Combo JackDust Filters: Top, Side, BottomFan Support

• Top: 3x 120 mm / 2x 140 mm
• Rear: 1x 120/140 mm
• Side: 3x 120 mm / 2x 140 mm
• Bottom: 3x 120 mm / 2x 140 mm

Radiator Support

• Top: 120-360, 140-280 @ 68 mm thick
• Rear: 1x 120/140 mm
• Side: 120-360, 140-280 @ 125 mm thick

Max Video Card Length: 422 mmMax Video Card Thickness: 105 mmMax CPU Cooler Height: 180 mmMax PSU Length: 235 mmStorage: 2x 3.5″ HDD or 4x 2.5″ SSDTouch Screen Specs

• Panel Technology: IPS
• Screen Size (Diagonal): 14.9 inches
• Resolution: 682 x 2560 (2.5K)
• Pixels Per Inch: 178
• Dot Pitch: 0.007 mm
• Brightness: 500 nits
• Contrast Ratio: 1000:1
• Viewing Angle: 80 degrees
• Refresh Rate: 60 Hz
• Pixel Response Time: 30 ms
• Touch Input: Yes, 10-Point Multi-Touch
• Input Connections: USB 2.0 Header, SATA Power, DisplayPort
• Nexus Powered: Yes, Nexus Touch
