| GRAPHICS |
| Model | GV-N506TWF2OC-8GD |
| Chipset | NVIDIA GEFORCE |
| GPU | RTX 5060 Ti |
| Engine Clock | 2587 MHz (Reference card :2572 MHz) |
| PCI EXPRESS | 5.0 |
| MEMORY CLOCK | 28 Gbps |
| MEMORY SIZE | 8 GB |
| MEMORY INTERFACE | 128-BIT |
| MEMORY TYPE | GDDR7 |
| OpenGL | 4.6 |

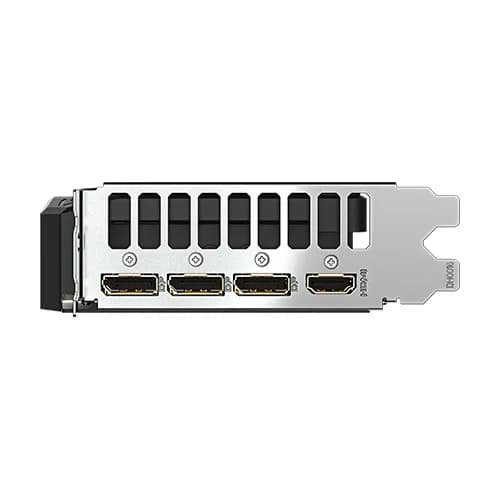

| PORTS | HDMI,DisplayPort |
| DirectX | 12 API |
| RESOLUTION | 7680 x 4320 |
| COOLER | Dual Fan |
| Max Display Support | 4 |
| Recommended PSU | 650W |
| GPU CORE (CUDA CORE) | 4608 |
| POWER CONNECTORS | 1 x 8-pin |
| WARRANTY | 3 Years |
| NOTE** | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only. |
Features:- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX?5060 Ti
- Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
- Server-grade Thermal conductive gel
- Reinforced structure
CORE CLOCK2587 MHz (Reference card :2572 MHz)
WINDFORCE COOLING SYSTEMThe WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
HAWK FANThe Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
ALTERNATE SPINNINGReduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
SERVER-GRADE THERMAL CONDUCTIVE GELTo enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
COPPER PLATE & COMPOSITE COPPER HEAT PIPEThe copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLINGExtended heatsink allows air to pass through, providing better heat dissipation.
