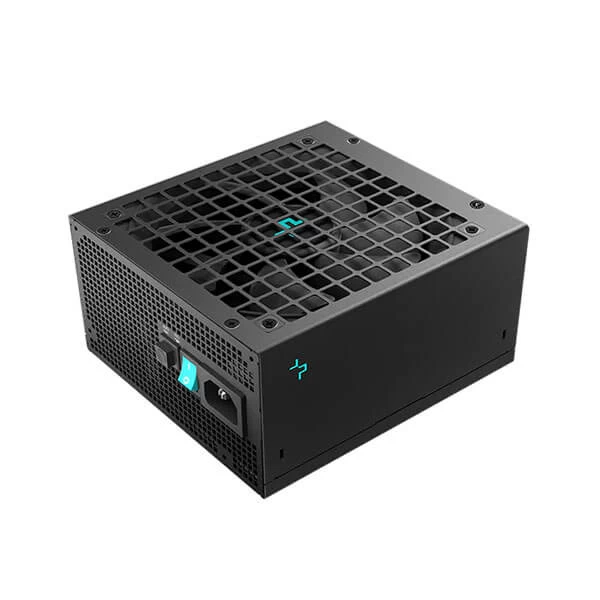

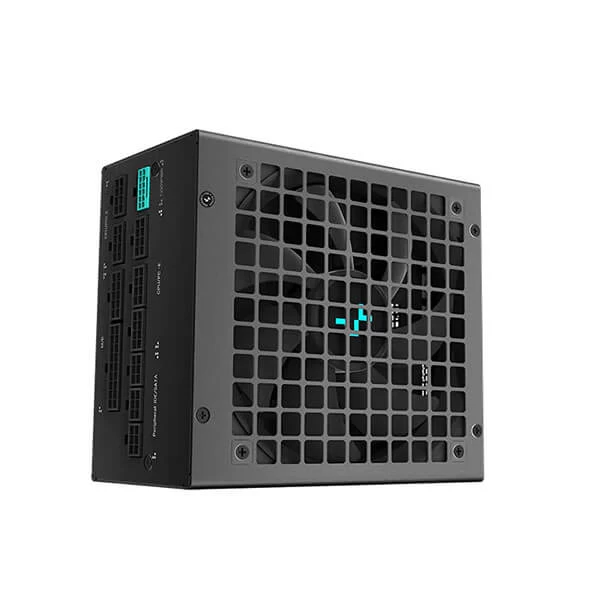

DeepCool PX1200G 1200 Watt 80 Plus Gold ATX 3.0 SMPS


18,200.00

Features:

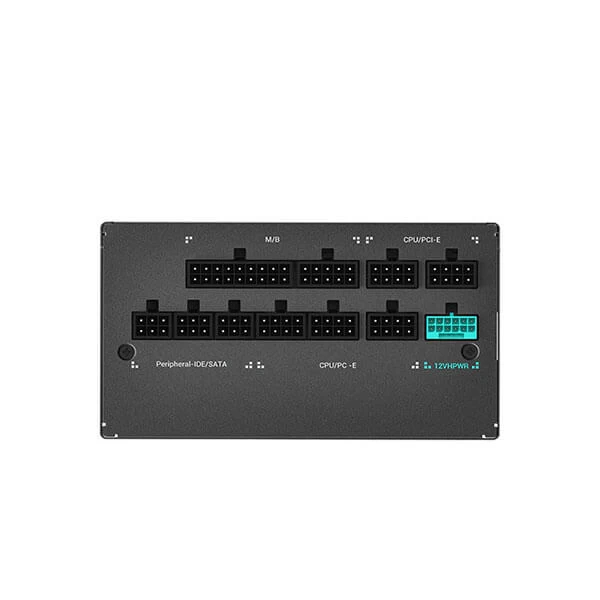

The DeepCool PX1200G is a newly designed power supply that meets the latest ATX 3.0 standard. With a dedicated 12VHPWR, 2 EPS, and 3 PCI-e ports, the PX1200G provides stable power for a wide range of components.

Past, Present and Future

With the ability to provide three times the total GPU and twice the total system power for 0.1 ms, power spikes will never be an issue. The PX1200G will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

PCI-e 5.0 Power Perfected

Equipped with the new PCI-e Gen 5.0 12VHPWR cable, the PX-G provides up to 600W for power hungry GPUS.

Static to Dynamic

The PX1200G comes equipped with the option to switch into semi-fanless operation. In hybrid mode, the 135mm FDB fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold.

Specification:

Model R-PXC00G-FC0B-UK
Type ATX12V V3.0
Product Dimensions 150×160×86mm (W x L x H)
Efficiency certification 80Plus GOLD/Cybenetics_Platinum
Fan Size 135mm
Fan Bearing FDB (Fluid Dynamic Bearing)
Topology Active PFC + Half Bridge SRC LLC + DC to DC
Power Good Signal 100-150ms
Hold Up Time ≥16ms
Efficiency ≥90% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP/UVP
Operation Temperature 0 – 40℃
Regulatory CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/KC
Erp Regulation ErP 2014
MTBF 100,000 Hours
Warranty 10 Years
Note *** Features, Price, Specifications are subject to change without notice.
  • Wattage1200 Watt
  • SeriesPX SERIES
  • Certification80+ GOLD
  • ModularFULLY MODULAR
  • PCIe Connector (6+2)3
  • SATA Connector2
  • Peripheral (4-Pin)1
  • Warranty10 Years
SKU: R-PXC00G-FC0B-UK Categories: , Tags: , , , ,
