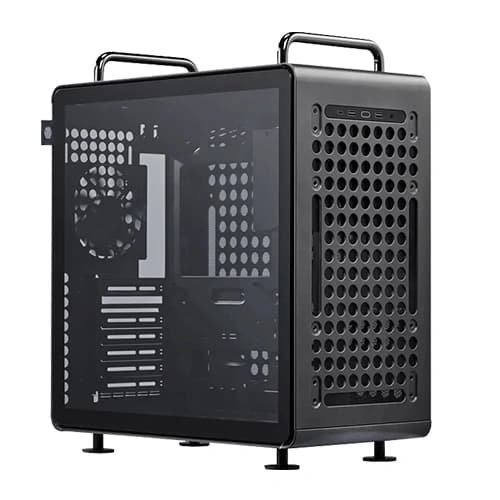

Cooler Master Qube 540 Stardust Iron ATX Mid Tower Case

Cabinet
Cabinet Size	MID-TOWER
Color	Stardust Iron
Material	Steel,Tempered Glass
Expansion Slots	7
Motherboard Size	E-ATX,ATX,M-ATX,M-ITX
Max CPU Cooler Height	172mm
Max PSU Length	200mm
Max Gpu Length	415mm
Max 3.5″ HDD	1
Max 2.5″ SSD	5
Dust Filters	Top,Bottom,Front
Pre Installed Fans	1
Max Fan Support	10
Radiator Support	360mm,280mm,240mm,140mm,120mm
Front I/O Panel	USB 3.2 Gen 1 Type A,USB 3.2 Gen 2,Type C,3.5 Mic,Audio Combo Jack
Warranty	2 Years
Note***	Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.

 Features:

• Dimensions (L x W x H):?Incl. Protrusions: 438.5 x 225 x 492.1 mm
• Dimensions (L x W x H):?Excl. Protrusions: 425 x 225 x 425 mm
• Volume (w/o protrusions):?40.64 L
• Volume (with panel, protrusions and feet):?48.55 L
• Motherboard Support:?ITX / M-ATX / ATX / *E-ATX (*Up to 280 mm)
• Expansion Slots:?7
• Drive Bays – 5.25″ ODD:?N/A
• Drive Bays – 3.5″ HDD:?1 (Shared 3.5″ and 2.5″ mounting on PSU bracket)
• Drive Bays – 2.5″ SSD:?2 (Max. 5)
• Fan Support – Front:?3 x 120 mm (w/o I/O panel) / 2 x 140 mm
• Fan Support – Top:?3 x 120 mm (w/o I/O panel) / 2 x 140 mm
• Fan Support – Rear:?1x 120mm
• Fan Support – Bottom:?3 x 120 mm / 2 x 140 mm
• Pre-installed Fans – Rear:?1x 120mm Black Fan
• Radiator Support – Front:?140 / 280 / 360 mm (w/o I/O panel)
• Radiator Support – Top:?140 / 280 / 360 mm (w/o I/O panel)
• Radiator Support – Rear:?120 mm
• Radiator Support – Bottom:?140 / 280 / 360mm (w/o I/O panel)
• Clearances – CPU Cooler:?172 mm
• Clearances – Power Supply:?200 mm
• Clearances – Graphics Card:?415 mm (w/o Front Fan)
• Cable Routing – Behind Motherboard Tray:?27 mm
• Power Supply Support:?ATX / SFX

Perfect for small apartments, dorm rooms, and creators on the move, the QUBE 540 fits your life as well as your PCCompact Yet CapableSmall size, big performance. The QUBE 540 supports GPUs up to 415 mm, 360 mm liquid coolers, and high-end components.Flexible Orientation DesignVertical or horizontal, the QUBE 540 adapts to your space and style. It fits cleanly wherever you place it.Create Your Own LayoutA modular interior designed for endless creativity, for liquid-cooling setups to compact workstations. Customize it your way.Repositionable I/O Panel and Movable HandlesMount the I/O panel and handles on the top, bottom, left, or right to keep ports and grips where you need them.Versatile Modular LayoutOce case, countless possibilities. Redefine your build anytime with swappable components and flexible layouts.Vertical GPU ReadySupports vertical GPU installation to highlight premium graphics and aesthetics.
