Features:ASUS Dual GeForce RTX 5060 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards ? including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
- SFF-Ready 2.5 Slot Design :Compatible with small-form-factor builds
- Axial-Tech Fans :Longer blades improve airflow and dispersion
- Vented Backplate :Enhanced cooling for optimal performance
- Dual-Ball Fan Bearings :Up to twice the lifespan of sleeve bearings
- Dual BIOS :Toggle between Performance or Quiet modes
- GPU Tweak III :Ultimate GPU tuning utility
Build Small. Play Big.You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
2.5-slot DesignA carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Axial-tech UpgradesTwo tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
0dB TechnologyTo eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.
Dual RTX 5060 fan illustration
Dual Ball Fan BearingsFan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.
Vented BackplateA vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
ASUS GPU GuardASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks.

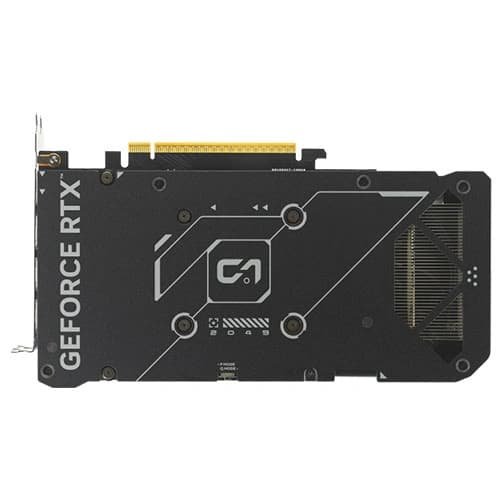

Protective BackplateThe PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.

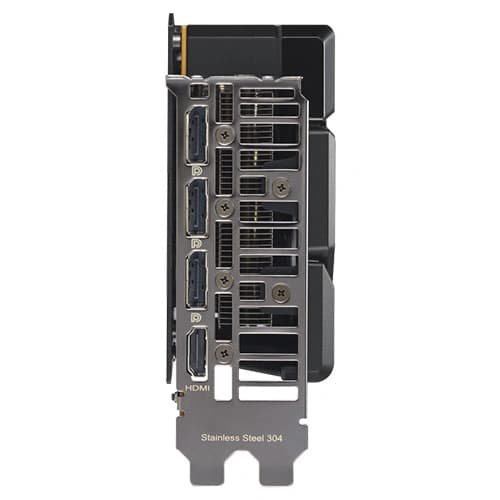

Stainless Steel BracketThe mounting bracket of the Dual has been beefed up with 304 Stainless Steel that?s harder and more resistant to corrosion.
Dual BIOSDo you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments.
Auto?Extreme TechnologyAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing completing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting and minimizes in less environmental impact, . The result is lower power consumption during manufacturing and a more reliable, high-quality product.lower manufacturing power consumption, and a more reliable product overall.
| GRAPHICS |
| Model | DUAL-RTX5060-O8G |
| Chipset | NVIDIA GEFORCE |
| GPU | RTX 5060 |
| Engine Clock | - OC mode: 2565MHz
- Default mode: 2535MHz (Boost Clock)
|
| PCI EXPRESS | 5.0 |
| MEMORY CLOCK | 28 Gbps |
| MEMORY SIZE | 8 GB |
| MEMORY INTERFACE | 128-BIT |
| MEMORY TYPE | GDDR7 |
| OpenGL | 4.6 |
| PORTS | HDMI,DisplayPort |
| DirectX | 12 Ultimate |
| RESOLUTION | 7680 x 4320 |
| COOLER | Dual Fan |
| Max Display Support | 4 |
| Recommended PSU | 550W |
| GPU CORE (CUDA CORE) | 3840 |
| POWER CONNECTORS | 1 x 8-pin |
| WARRANTY | 3 Years |
| NOTE** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
