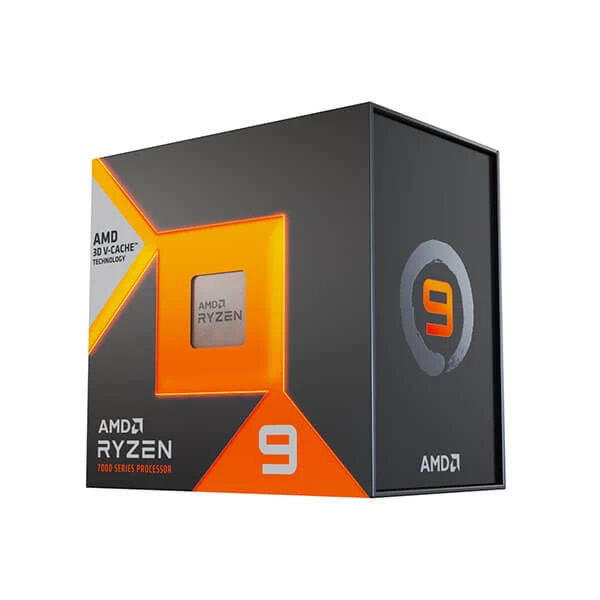

AMD Ryzen 9 7900X3D Processor With Radeon Graphics


52,500.00

Specification:

Model RYZEN-9-7900X3D
General Specifications
Platform Desktop
Product Family AMD Ryzen™ Processors
Market Segment Enthusiast Desktop
Product Line AMD Ryzen™ 9 Processors
AMD PRO Technologies No
Consumer Use Yes
Regional Availability Global
Former Codename “Raphael AM5”
Architecture “Zen 4”
Multithreading (SMT) Yes
# of CPU Cores 12
# of Threads 24
Max. Boost Clock Up to 5.6GHz
Base Clock 4.4GHz
L1 Cache 768KB
L2 Cache 12MB
L3 Cache 128MB
Default TDP 120W
Processor Technology for CPU Cores TSMC 5nm FinFET
Processor Technology for I/O Die TSMC 6nm FinFET
CPU Compute Die (CCD) Size 71mm²
I/O Die (IOD) Size 122mm²
Package Die Count 3
*OS Support Windows 11 – 64-Bit Edition
Windows 10 – 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
AMD EXPO™ Memory Overclocking Technology Yes
Precision Boost Overdrive Yes
Curve Optimizer Voltage Offsets Yes
AMD Ryzen™ Master Support Yes
CPU Socket AM5
Supporting Chipsets X670E
X670
B650E
B650
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB) Not Included
Max. Operating Temperature (Tjmax) 89°C
Connectivity
USB Type-C® Support Yes
Native USB 3.2 Gen 2 (10Gbps) Ports 4
Native USB 3.2 Gen 1 (5Gbps) Ports 0
Native USB 2.0 (480Mbps) Ports 1
Native SATA Ports 0
PCI Express® Version PCIe® 5.0
Native PCIe® Lanes (Total/Usable) 28/24
Additional Usable PCIe Lanes from Motherboard
  • AMD X670E 12x Gen4
  • AMD X670   12x Gen4
  • AMD B650E  8x Gen4
  • AMD B650    8x Gen4
NVMe Support Boot, RAID0, RAID1, RAID10
System Memory Type DDR5
Memory Channels 2
Max. Memory 128GB
System Memory Subtype UDIMM
Max Memory Speed
  • 2x1R DDR5-5200
  • 2x2R DDR5-5200
  • 4x1R DDR5-3600
  • 4x2R DDR5-3600
ECC Support Yes (Requires mobo support)
Graphics Capabilities
Integrated Graphics Yes
Graphics Model AMD Radeon™ Graphics
Graphics Core Count 2
Graphics Frequency 2200 MHz
GPU Base 400 MHz
USB Type-C® DisplayPort™ Alternate Mode Yes
Key Features
Supported Technologies
  • AMD EXPO™ Technology
  • AMD Ryzen™ Technologies
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.





  • SeriesRyzen 9
  • CORES12 Cores
  • THREADS24 Threads
  • SPEED4.4 GHz
  • SPEED (TURBO)5.6 GHz
  • CACHE140 MB
  • MAX MEMORY SUPPORT128 GB
  • INTEGRATED GRAPHICSAMD Radeon Graphics
  • UNLOCKEDYES
  • TDP120W
  • WARRANTY*3 Years
SKU: 100-100000909W0F Categories: , Tags: , ,
