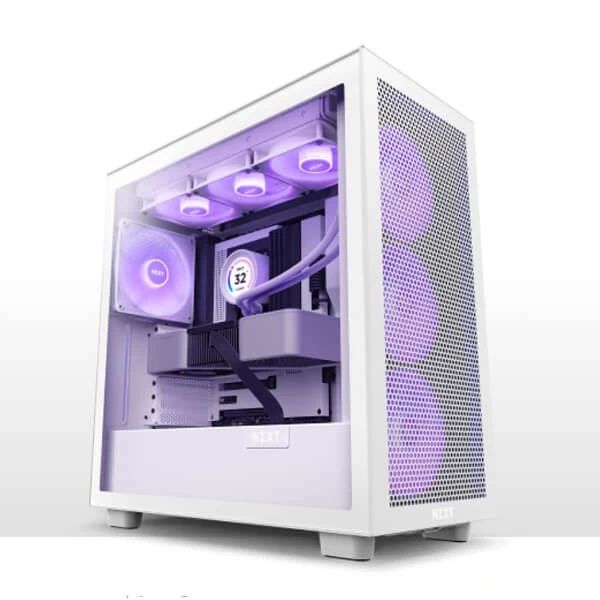

NZXT H7 Flow RGB Cabinet comes with white color design. It is featuring with three pre-installed 140mm RGB Core fans and one F120Q Quiet Airflow fans. Two top-mounted USB 3.2 Type-A ports, one top-mounted USB 3.2 Type-C port.
Features:
The H7 Flow RGB is ready to keep premium components vibrantly cool. Featuring three pre-installed 140mm RGB Core fans & one F120Q Quiet Airflow fan, this case is ready to kick start your love of RGB in a major way.
Includes three pre-installed F140 RGB Core fans & one F120Q Quiet Airflow fan
Perforated front & top panels enable maximum thermal performance
Intuitive cable management system with wide channels, hooks, & straps

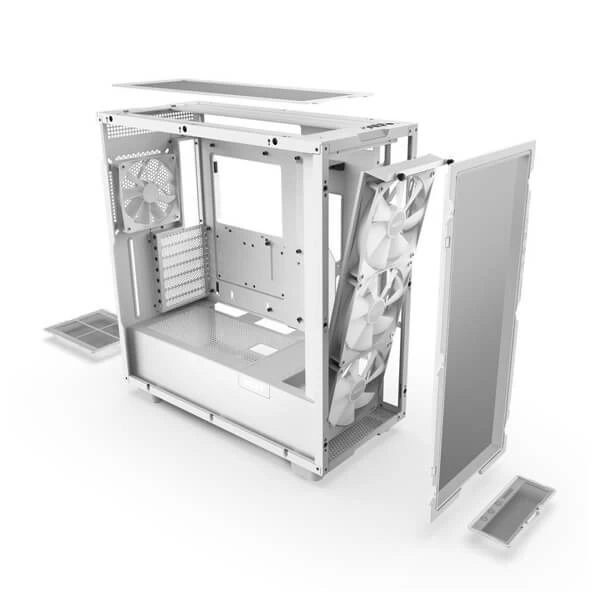

Tool-less access to front & side panels (tinted panels on black variant only)
Front & top support radiators up to 360mm
Connects multiple F140 RGB Core fans to 5V ARGB header on the motherboard
Supports vertical GPU mounting (Sold Separately)

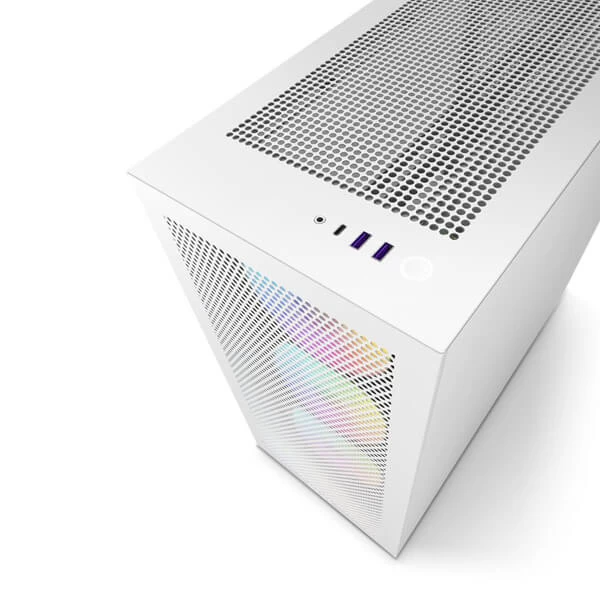

Two top-mounted USB 3.2 Type-A ports
One top-mounted USB 3.2 Type-C port
Specifications:
Model Number
CM-H71FW-R1
Key Specs
Motherboard Support
Mini-ITX, Micro-ATX, ATX
Enclosure Type
Mid-Tower
Case Material (Black)
SGCC Steel, Dark Tinted Tempered Glass
Fan Support
Front
3 x 120mm / 3 x 140mm (3 x F Series RGB Core 140mm included)
Top
3 x 120mm / 2 x 140mm
Rear
1 x 120mm / 1 x 140mm (1 x F Series Quiet 140mm (Case Version) included)
Filters
All Air Intakes
Dimensions
Height (With Feet)
505mm
Height (Without Feet)
480mm
Width
230mm
Depth
480mm
Weight
10.57kg
Radiator Support
Front
Up to 360mm with Push/Pull
Top
Up to 360mm
Rear
Up to 140mm
Compatibility & Clearance
Max CPU Cooler Clearance
Up to 185mm
Max GPU Clearance
Up to 400mm
Front Radiator Clearance
60mm
Cable Management
18-22mm
Top Radiator Clearance
30mm
PSU Clearance
Up to 200mm
Fan Specs
Model
F140 RGB Core Fan (Case Version)
Speed
1200 ± 120 RPM
Airflow
61.74 CFM
Static Pressure
2.06mm-H2O
Noise
29.05 dBA
Fan Connector
3-pin
Front I/O Ports
USB 3.2 Gen 1 Type-A
2
USB 3.2 Gen 2 Type-C
1
Headset Audio Jack
1
Fan Specs
Model
F120Q (Case Version)
Speed
1200 ± 240RPM
Airflow
62.18 CFM
Static Pressure
1.05 mm-H2O
Noise
25.1 dBA
Fan Connector
3-pin
Expansion Slots
Standard
7
Vertical
0
Drive Bays
2.5″
4+2
3.5″
2
Warranty
2 Years
Note
*** Features, Price, Specifications are subject to change without notice.
