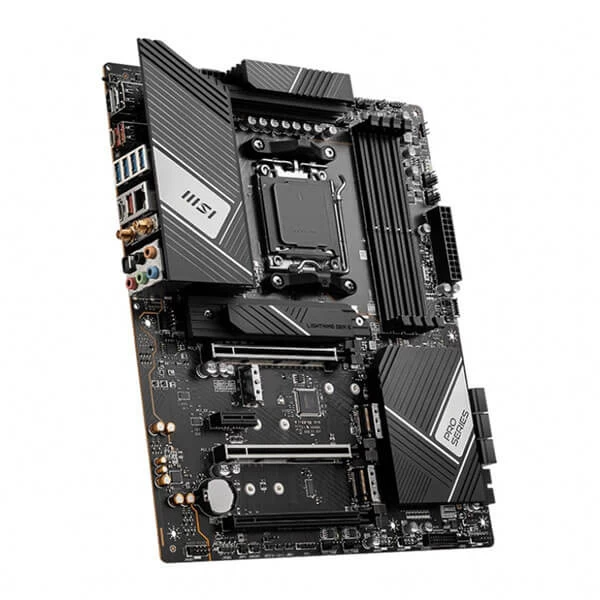

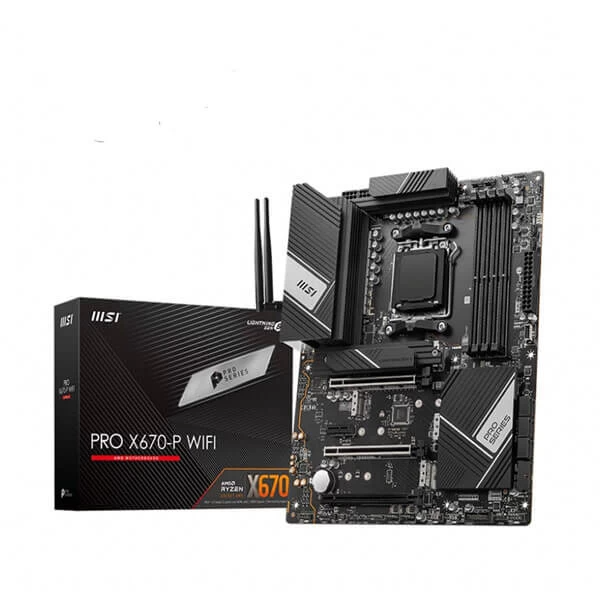

MSI Pro X670-P WIFI Motherboard

Features:

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

• Supports AMD Ryzen™ 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 6600+MHz (OC)
• Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
• Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Cooling Overview

• Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

• Double-sided M.2 Shield Frozr

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

• Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

• 7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

• Enlarged PCH Heatsink

The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

Fully Fan Control

• CONTROL IN ONE CLICK

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

• FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

• AUTO DETECT YOUR FAN

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
msi auto detect your fan

Water Cooling

• OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

STRUCTURE

• 14+2+1 POWER DESIGN

Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 80A Smart Power Stage, PRO X670-P WIFI is ready for the challenge of high-end processors.

PCB DESIGN

• OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

EZ M.2 CLIP

Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.

DRIVER UTILITY INSTALLER

Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically,

SYSTEM SAVER

Run into trouble when updating your BIOS or somehow corrupted it? Don’t worry, MSI motherboards offer multiple options to successfully boot your system again.

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

LIGHTNING USB 20G

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2×2 20G

Using USB 3.2 devices has never been faster! MSI PRO series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

FRONT USB TYPE C

MSI PRO motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO X670-P WIFI is ready to deliver the world class memory performance.

EASY OVERCLOCKING WITH EXPO PROFILE

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.

MEMORY BOOST

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.

Exclusive UI of AIDA64 Extreme

MSI motherboards provide 60 days free trail of AIDA64 Extreme – MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

AUDIO BOOST 5

• HIGH PERFORMANCE ALC4080 AUDIO PROCESSOR
• HIGH QUALITY AUDIO CAPACITORS
• HIGH QUALITY AUDIO JACKS WITH S/PDIF
• ISOLATED AUDIO SIGNAL
• DE-POP PROTECTION

GLOW YOUR PC

Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI’s premium network solution provides incredible data transfer speed for demanding users.

Specification:

Chipset	AMD X670
CPU SUPPORT	Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6600+(OC)/6400(OC)/ 6200(OC)/6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6600+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Onboard Graphics	1x HDMI™ 1x DisplayPort Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz* 1x Display Port Supports DP1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	3x PCI-E x16 slot Supports x16/x4/x2 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From CPU) PCI_E4 PCIe 4.0 supports up to x2 (From Chipset)
Storage	4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices *SATA_A1 & SATA_A2 do not support RAID function.
USB	4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Realtek® RTL8125BG 2.5G LAN
WIRELESS / BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2*** Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
Audio	Realtek® ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Internal I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 4x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
LED FEATURE	4x EZ Debug LED

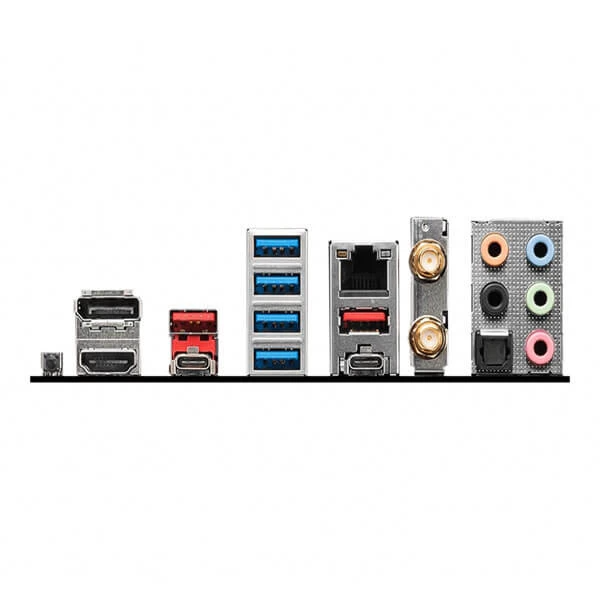

BACK PANEL PORTS	DisplayPort USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-C Display port) USB 3.2 Gen 2×2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) S/PDIF-OUT
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension	ATX 243.84mmx304.8mm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
