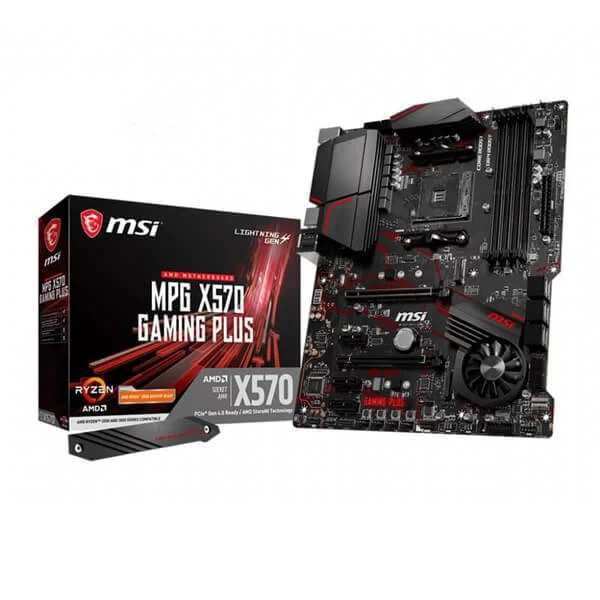

FEATURES
Satisfying gamers with what they really need, MPG X570 GAMING PLUS is equipped with Extended Heatsink Design, Frozr Heatsink Design, Core boost, Lightning Gen4 M.2, M.2 Shield Frozr accessory, Turbo USB and MSI latest Dragon Center
- Supports Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics Desktop Processors for AM4 socket
- Supports DDR4 Memory
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr accessory, StoreMI, AMD Turbo USB 3.2 GEN2
- Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
- Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connector, Game Boost, DDR4 Boost
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- AUDIO BOOST 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface.
SPECIFICATIONS
| PROCESSOR |
Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4 |
| CHIPSET |
AMD® X570 Chipset |
| MEMORY |
- 4x DDR4 memory slots, support up to 128GB
- 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE
- nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
- Please refer msi official website for more information on compatible memory.
|
| EXPANSION SLOTS |
- 1x PCIe 4.0/3.0 x16 slot (PCI_E1)
- 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
- 2nd Gen AMD Ryzen™ support PCIe 3.0×16 mode
- Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
- 1x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode)
- 3x PCIe 3.0 x1 slots
- PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.
- The speeds may vary for different devices
|
| ONBOARD GRAPHICS |
- 1x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @24Hz
- Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors
- Maximum shared memory of 2048 MB
|
| MULTI-GPU |
Supports 2-Way AMD® CrossFire™ Technology |
| STORAGE |
AMD® X570 Chipset
- 6x SATA 6Gb/s ports
- 2x M.2 slots (Key M)
- M2_1 slot(from AMD® Processor)
– Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
– Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
– Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot (from AMD® X570 Chipset)
– Supports PCIe 3.0 x4 and SATA 6Gb/s
– Supports 2242/ 2260/ 2280 storage devices
|
| RAID |
Supports RAID 0, RAID 1 and RAID 10 |
| USB |
AMD® X570 Chipset
- 6x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors)
- 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® Processor
- 2x USB 3.2 Gen 2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
- 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
|
| AUDIO |
Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports Optical S/PDIF output
|
| LAN |
1x Realtek® 8111H Gigabit LAN Controller |
| INTERNAL CONNECTORS |
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 1x 4-pin ATX 12V power connector
- 6x SATA 6Gb/s connectors
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump connector
- 4x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x TPM module connector
- 1x Serial port connector
- 1x Clear CMOS jumper
- 1x Chassis Intrusion connector
- 2x 4-pin RGB LED connectors
- 2x 3-pin RAINBOW LED connectors
- 4x EZ Debug LEDs
|

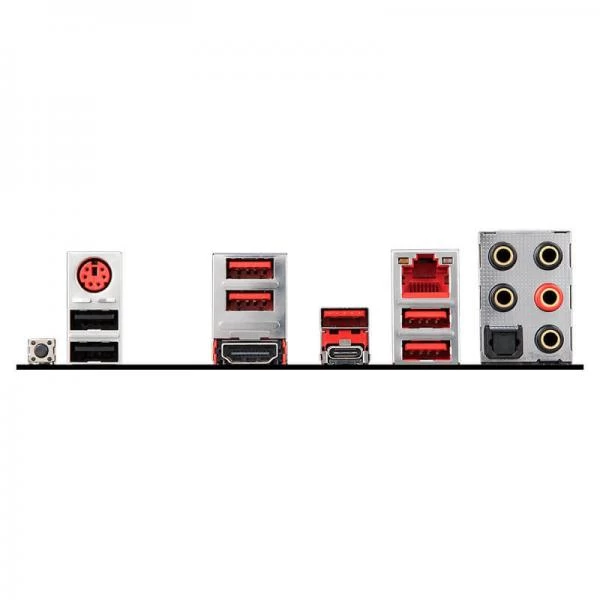

| BACK PANEL PORTS |
- Keyboard / Mouse
- USB 3.2 Gen1 Type-A
- LAN
- Audio Connectors
- Flash BIOS Button
- USB 2.0
- HDMI
- USB 3.2 Gen2 Type-A + C
- USB 3.2 Gen1 Type-A
- Optical S/PDIF out
|
| DIMENSIONS |
- 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
- ATX Form Factor
|
| MOUNTING |
9 mounting holes |
| OPERATING SYSTEM |
- Support for Windows® 10 64-bit
- Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
| Warranty |
3 Years |
| Note |
***Features,Price and Specifications are subject to change without notice. |
