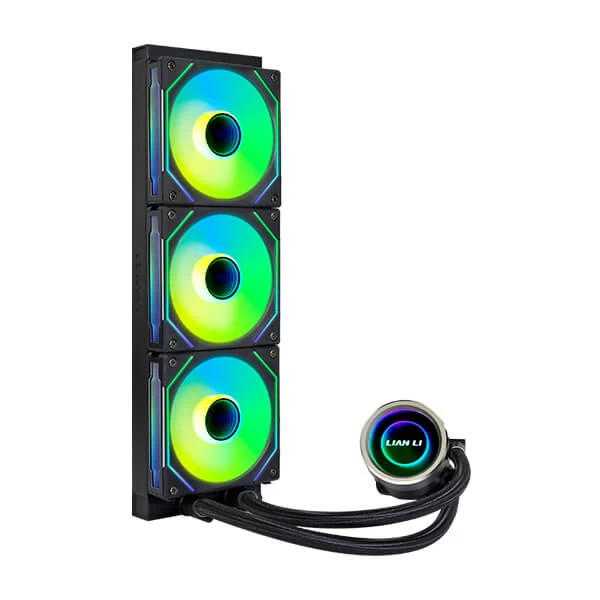

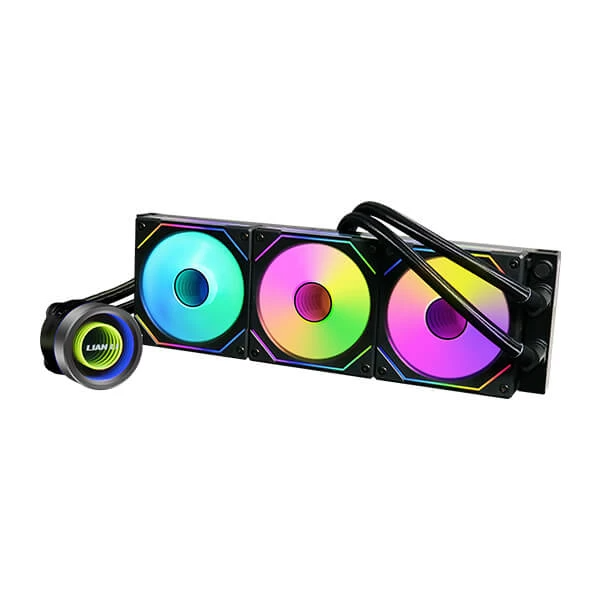

Galahad II Trinity series introduces redesigned mounting backplates to provide a hassle-free installation to users while maintaining compatibility with most mainstream CPU sockets. UNI FAN SL-INF controller included in Galahad II Trinity SL-INF version.
- 3 interchangeable pump looks that can be customized with L-Connect 3
- Factory installed with ARGB daisy-chainable radiator fansor UNI FAN SL-INF
- Pump motor speed goes up to 3200RPM

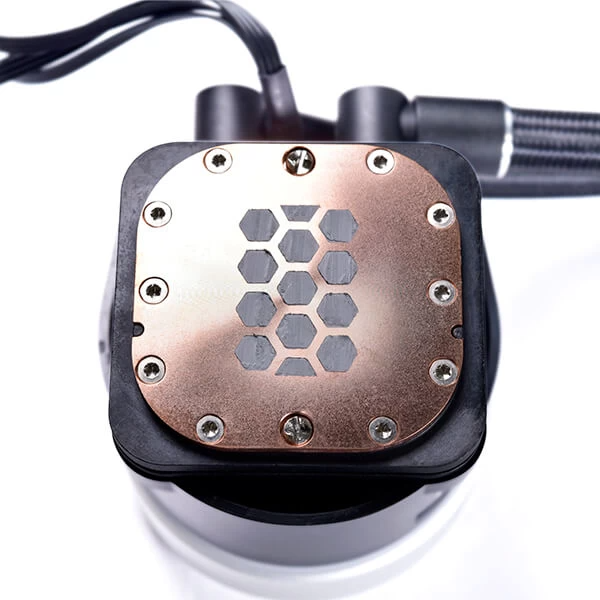

- Includes a newly designed copper plate and creates straightened Liquid coolant pathway
- 45-degree tubing connector with tubes’ inner diameter increased to 7mm
IMPROVED DESIGNS, IMPROVED PERFORMANCE
Compared to the Galahad AIO, the Galahad ll Trinity series shows significant improvement in cooling performance thanks to the many design changes that were introduced.
CHOOSE PREFERABLE LOOK
The Galahad II Trinity series’ pump cap has three interchangeable designs, each with a unique look and two rings of colors that can be individually controlled with different lighting effects.
- DUO- INFINITY

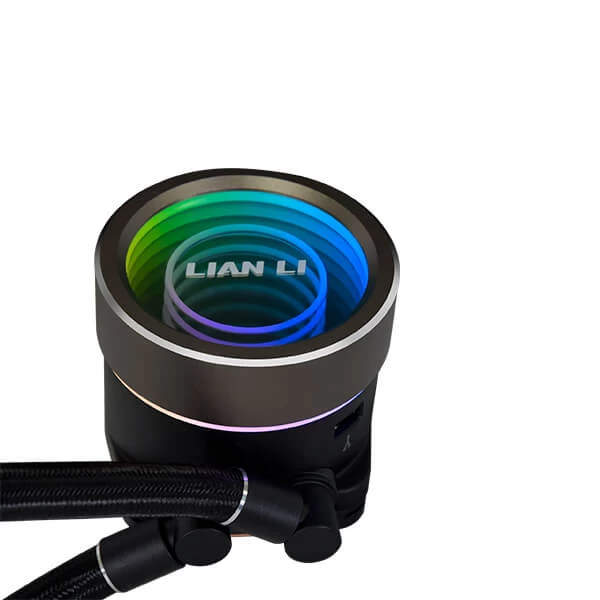

An aluminum housing cap with duo infinity mirror rings and a Lian Li logo at the center.
An entirely shining pump cap that brings the most vivid lighting to your build.

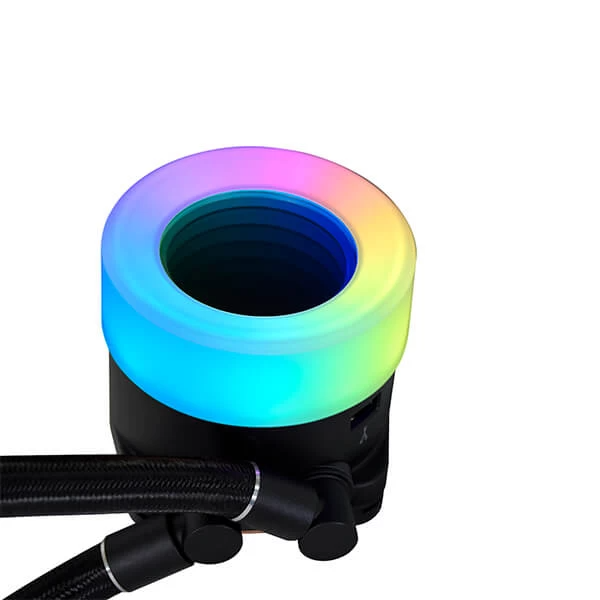

The combination of diffuser and infinity mirror creates the sinkhole effect.
HIGH DENSITY ALUMINUM RADIATOR
This 27mm thick radiator features single-wave radiator fins with 20 FPI (fins per inch), which is less airflow restrictive and can result in greater thermal performance.
DAISY-CHAINABLE ARGB FAN
The ARGB PWM fans can be daisy-chained by a single short cable which can be hidden inside the frame of the fan. The 120mm fan is 25mm thick and is equipped with fluid dynamic bearings for stable and quiet operations while effectively providing airflow to the radiator.
MOUNT IN ANY WAY
This innovative 45° tubing connector gives the tubes the freedom of 360° rotation, allowing the Galahad ll Trinity series to be installed in many different ways.
To make things even better, it also comes with a leather strap to help with organizing the tubes.
INSTALATION MADE EASY, FOR YOU

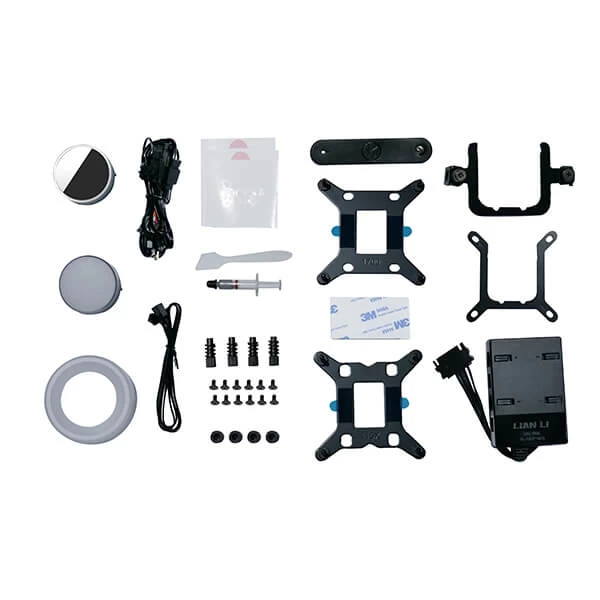

The Galahad II Trinity series introduces redesigned mounting backplates to provide a hassle-free installation to users while maintaining compatibility with most mainstream CPU sockets. The backplates have a one-piece design with fixed struts to make installation easier.
The controller is built in the pump and the fan can be connected to the pump to control via L-Connect 3.
ARGB and fan extension input cable
Connect an ARGB device or fan for control via L-Connect 3
Required for motherboard sync(No need to use if only using L-Connect)
Plug into a motherboard 9-pin USB header for L-Connect 3 support
4-PIN PWM Cable
Required for RPM control
5 YEAR WARRANTY
Built with high quality, the Galahad II Trinity AIO is proudly backed by a 5 year warranty, including the fans and controller. The damage due to leakage will be backed up with 3 year.
|PRODUCT NAME||GALAHAD II TRINITY SL-INF|
|PUMP SPEED||3200 RPM|
|RADIATOR FINS||Single wave|
|RADIATOR SIZE||397.5 x 119.2 x 27mm|
|PUMP SIZE||74 x 74 x 69mm|
|INCLUDED PUMP BLOCK CAPS||Dazzle Mode,Sink Hole, Duo-Infinity|
|FAN SIZE||120 x 120 x 25mm|
|FAN SPEED||2100 RPM (Max.)|
|STATIC PRESSURE||2.66 mmH2O (Max.)|
|AIRFLOW||61.3 CFM (Max.)|
|ACOUSTIC NOISE||29 dB(A)|
|BEARING TYPE||Fluid Dynamic Bearing (FDB)|
|COMPATIBLE CPU SOCKETS||Intel: LGA 1700 / 1200 / 115x
AMD: AM5 / AM4
|Note||*** Features, Price, Specifications are subject to change without notice.|
