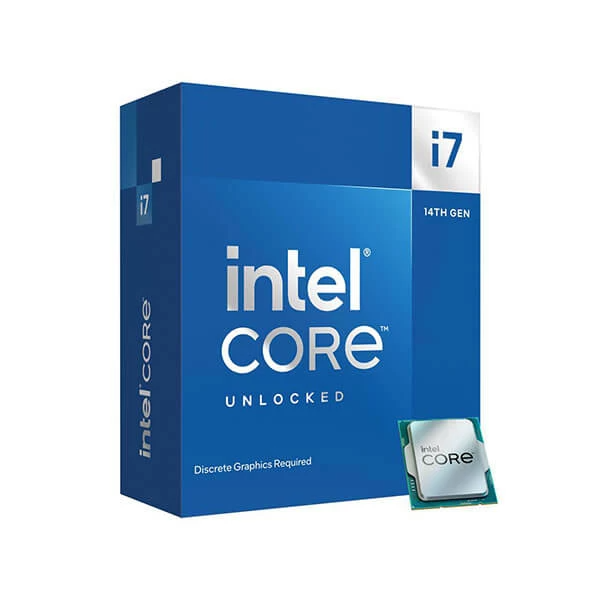

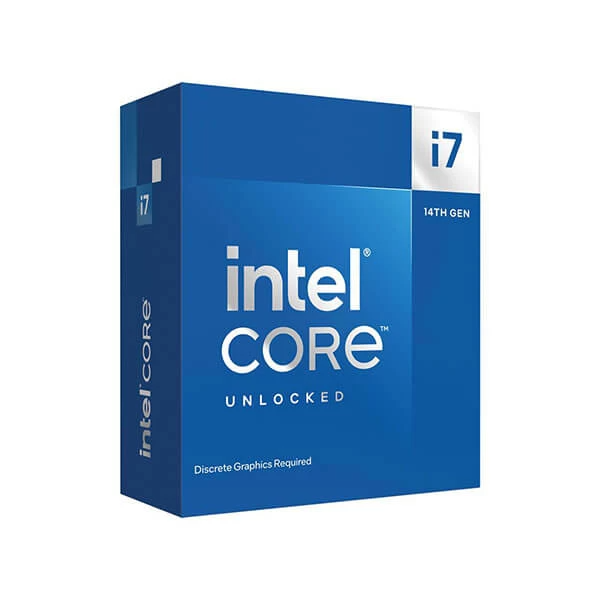

Intel Core I7-14700KF Processor
Original price was: ₹40,500.00.₹38,500.00Current price is: ₹38,500.00.
Description
Specfications
Intel Core i7-14700KF is a Desktop Processor is Compatible with Intel 600-series and 700-series chipset-based motherboards. 20 cores (8 P-cores + 12 E-cores) and 28 threads
Specification:| Model | i7-14700KF |
| Product Collection | Intel? Core? i7 Processors (14th gen) |
| Code Name | Products formerly RAPTOR LAKE |
| Vertical Segment | Desktop |
| Lithography | Intel 7 |
| Use Conditions | PC/Client/Tablet |
| CPU Specifications | |
| Total Cores | 20 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 12 |
| Total Threads | 28 |
| Max Turbo Frequency | 5.6 GHz |
| Intel? Turbo Boost Max Technology 3.0 Frequency ? | 5.6 GHz |
| Performance-core Max Turbo Frequency | 5.5 GHz |
| Efficient-core Max Turbo Frequency | 4.3 GHz |
| Performance-core Base Frequency | 3.4 GHz |
| Efficient-core Base Frequency | 2.5 GHz |
| Cache | 33 MB Intel? Smart Cache |
| Total L2 Cache | 28 MB |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 253 W |
| Supplemental Information | |
| Marketing Status | Launched |
| Launch Date | Q4’23 |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 192 GB |
| Memory Types | Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 89.6 GB/s |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4.0 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ? | Up to 1×16+4, 2×8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020A |
| TJUNCTION | 100?C |
| Package Size | 45.0 mm x 37.5 mm |
| Advanced Technologies | |
| Intel? Gaussian & Neural Accelerator | 3.0 |
| Intel? Thread Director | Yes |
| Intel? Deep Learning Boost (Intel? DL Boost) on CPU | Yes |
| Intel? Speed Shift Technology | Yes |
| Intel? Turbo Boost Max Technology 3.0 ? | Yes |
| Intel? Turbo Boost Technology ? | 2.0 |
| Intel? Hyper-Threading Technology ? | Yes |
| Intel? 64 ? | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel? SSE4.1, Intel? SSE4.2, Intel? AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep? Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel? Volume Management Device (VMD) | Yes |
| Security & Reliability? | |
| Intel? Standard Manageability (ISM) ? | Yes |
| Intel? Control-Flow Enforcement Technology | Yes |
| Intel? AES New Instructions | Yes |
| Secure Key | Yes |
| Intel? OS Guard | Yes |
| Execute Disable Bit ? | Yes |
| Intel? Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel? Virtualization Technology (VT-x) ? | Yes |
| Intel? Virtualization Technology for Directed I/O (VT-d) ? | Yes |
| Intel? VT-x with Extended Page Tables (EPT) ? | Yes |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
- SeriesCore i7 (14th Gen)
- CORES20 Cores
- SocketLGA1700
- SPEED2.5 GHz
- CACHE33 MB
- MAX MEMORY SUPPORT192 GB
- INCLUDED CPU COOLERNo
- UNLOCKEDYes
- TDP125W
- WARRANTY*3 Years
