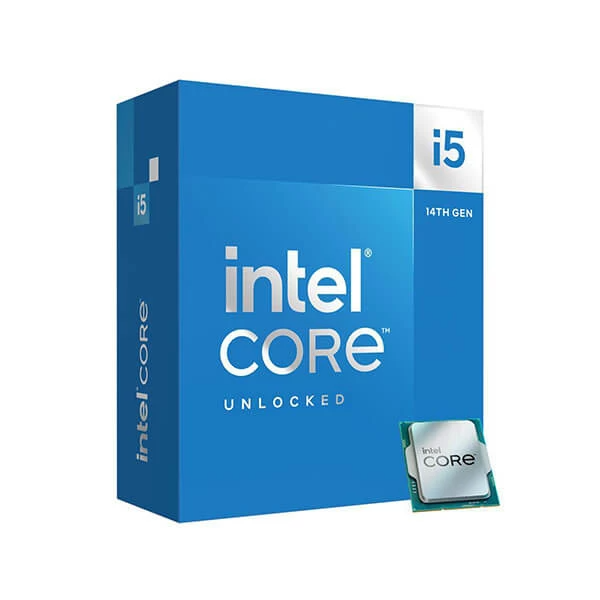

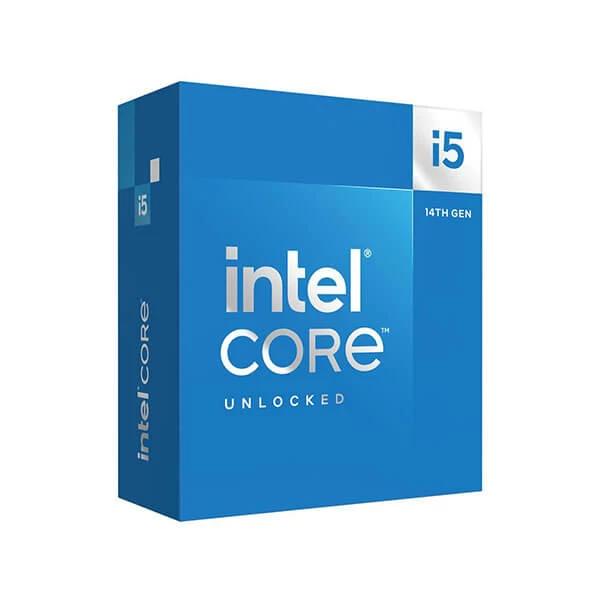

Intel Core I5-14600K Processor
Original price was: ₹54,990.00.₹28,800.00Current price is: ₹28,800.00.
Description
Specfications
Specification:Intel Core i5-14600K Desktop Processor contains 14 cores (6 P-cores + 8 E-cores) and 20 threads. Turbo Boost Max Technology 3.0 Frequency, and PCIe 5.0 & 4.0 support. Intel Optane Memory support. No thermal solution included.
| Model | i5-14600K |
| Product Collection | Intel? Core? i5 Processors (14th gen) |
| Code Name | Products formerly RAPTOR LAKE |
| Vertical Segment | Desktop |
| Lithography | Intel 7 |
| Use Conditions | PC/Client/Tablet, Workstation |
| CPU Specifications | |
| Total Cores | 14 |
| # of Performance-cores | 6 |
| # of Efficient-cores | 8 |
| Total Threads | 20 |
| Max Turbo Frequency | 5.3 GHz |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4 GHz |
| Performance-core Base Frequency | 3.5 GHz |
| Efficient-core Base Frequency | 2.6 GHz |
| Cache | 24 MB Intel? Smart Cache |
| Total L2 Cache | 20 MB |
| Processor Base Power | 125 W |
| Maximum Turbo Power | 181 W |
| Supplemental Information | |
| Marketing Status | Launched |
| Launch Date | Q4’23 |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 192 GB |
| Memory Types | Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 89.6 GB/s |
| ECC Memory Supported ? | Yes |
| GPU Specifications | |
| Processor Graphics ? | Intel? UHD Graphics 770 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.55 GHz |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI)? | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)? | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP – Integrated Flat Panel)? | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3.0 |
| Multi-Format Codec Engines | 2 |
| Intel? Quick Sync Video | Yes |
| Intel? Clear Video HD Technology | Yes |
| # of Displays Supported ? | 4 |
| Device ID | 0xA780 |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4.0 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ? | Up to 1×16+4, 2×8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020A |
| TJUNCTION | 100?C |
| Package Size | 45.0 mm x 37.5 mm |
| Advanced Technologies | |
| Intel? Gaussian & Neural Accelerator | 3.0 |
| Intel? Thread Director | Yes |
| Intel? Deep Learning Boost (Intel? DL Boost) on CPU | Yes |
| Intel? Speed Shift Technology | Yes |
| Intel? Turbo Boost Technology ? | 2.0 |
| Intel? Hyper-Threading Technology ? | Yes |
| Intel? 64 ? | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel? SSE4.1, Intel? SSE4.2, Intel? AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep? Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel? Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel? Standard Manageability (ISM) ? | Yes |
| Intel? Control-Flow Enforcement Technology | Yes |
| Intel? AES New Instructions | Yes |
| Secure Key | Yes |
| Intel? OS Guard | Yes |
| Execute Disable Bit ? | Yes |
| Intel? Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel? Virtualization Technology (VT-x) ? | Yes |
| Intel? Virtualization Technology for Directed I/O (VT-d) ? | Yes |
| Intel? VT-x with Extended Page Tables (EPT) ? | Yes |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
- SeriesCore i5 (14th Gen)
- CORES14 Cores
- SocketLGA1700
- SPEED2.6 GHz
- CACHE24 MB
- MAX MEMORY SUPPORT192 GB
- INTEGRATED GRAPHICS Intel UHD Graphics 770
- INCLUDED CPU COOLER No
- UNLOCKED Yes
- TDP125W
- WARRANTY*3 Years
