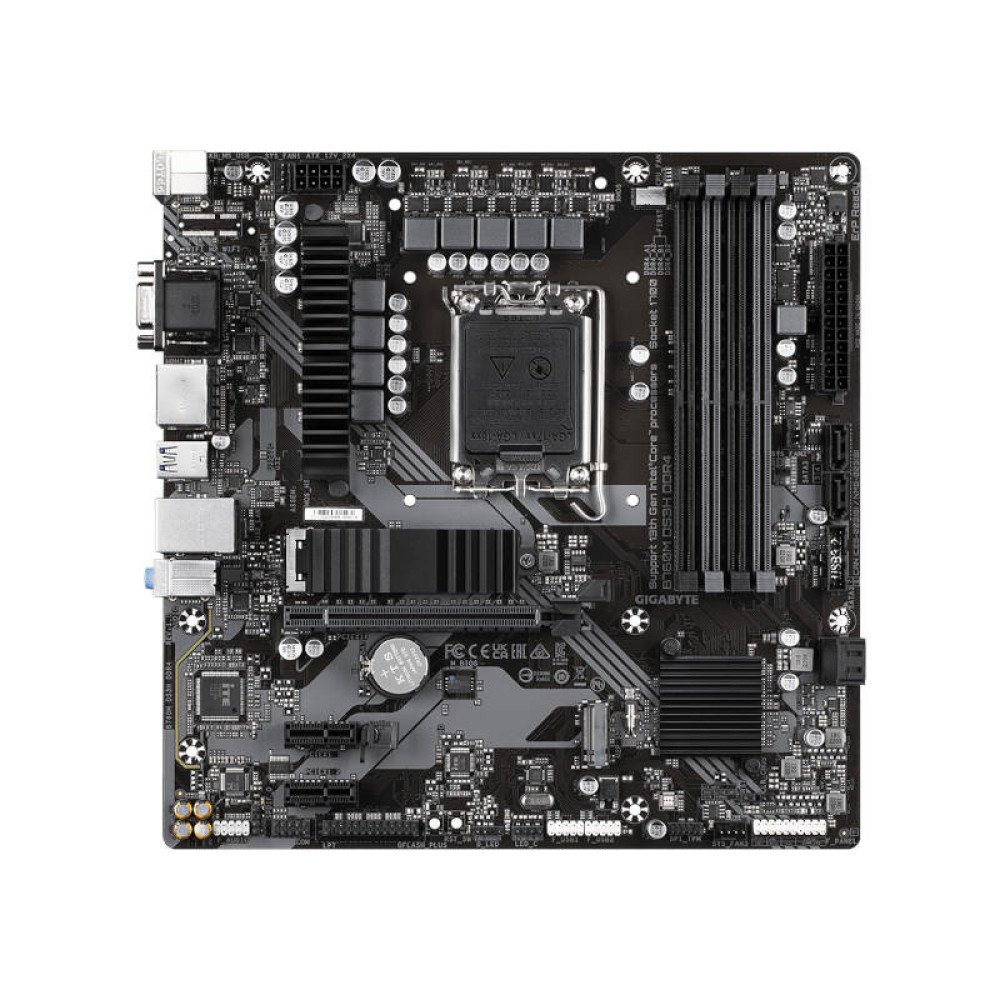

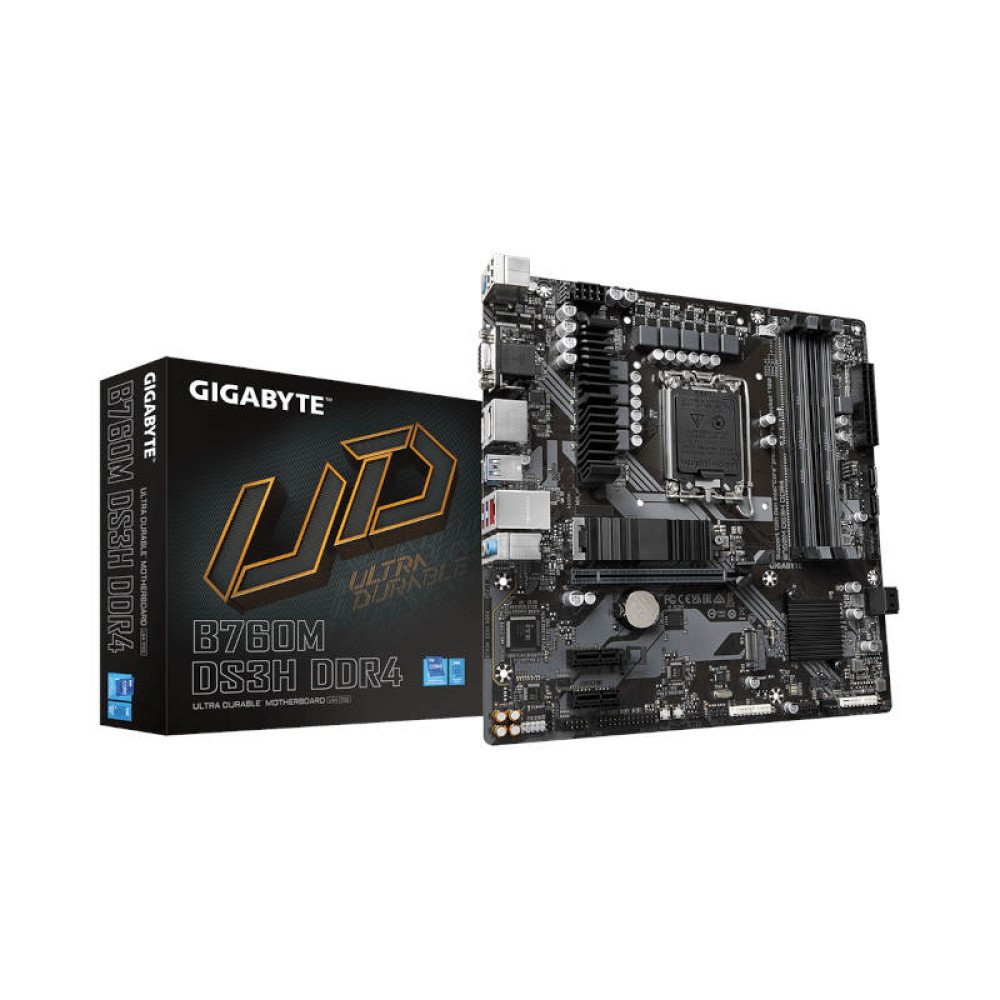

GIGABYTE B760M DS3H DDR4 MOTHERBOARD
Original price was: ₹16,100.00.₹14,150.00Current price is: ₹14,150.00.
Description
Specfications
B760M DS3H DDR4 (rev. 1.0)
- Intel? Socket LGA 1700?Support 13th and 12th Gen Series Processors
- Unparalleled Performance?Hybrid 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR4?4*DIMMs XMP Memory Module Support
- Next Generation Storage?2*PCIe 4.0 x4 M.2 Connectors
- M.2 Thermal Guard?To Ensure M.2 SSD Performance
- EZ-Latch?PCIe 4.0×16 Slot with Quick Release Design
- Fast Networks?2.5GbE LAN
- Extended Connectivity?Rear USB-C? 10Gb/s, DP, HDMI
- Smart Fan 6?Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus?Update BIOS Without Installing the CPU, Memory and Graphics Card
| Specification | |
| CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel? Core?, Pentium? Gold and Celeron? ProcessorsL3 cache varies with CPU(Please refer “CPU Support List” for more information.) |
| Chipset | Intel? B760 Express Chipset |
| Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer “Memory Support List” for more information.) |
| Onboard Graphics | Integrated Graphics Processor-Intel? HD Graphics support:1 x D-Sub port, supporting a maximum resolution of?1920×1200@60?Hz1 x HDMI port, supporting a maximum resolution of?4096×2160@60?Hz* Support for HDMI 2.0 version and HDCP 2.3.1 x DisplayPort, supporting a maximum resolution of?4096×2304@60?Hz* Support for DisplayPort 1.2 version and HDCP 2.31 x DisplayPort, supporting a maximum resolution of?4096×2304@60?Hz* Support for DisplayPort 1.2 version.(Graphics specifications may vary depending on CPU support.)Support for up to quad-display at the same time |
| Audio | Realtek? Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out |
| LAN | Realtek? 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | Chipset:1 x USB Type-C? port on the back panel, with USB 3.2 Gen 2 support5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)2 x USB 2.0/1.1 ports on the back panelChipset+2 USB 2.0 Hubs:4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x addressable LED strip header1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x parallel port header1 x S/PDIF Out header1 x Q-Flash Plus button1 x reset button1 x reset jumper1 x Clear CMOS jumper |

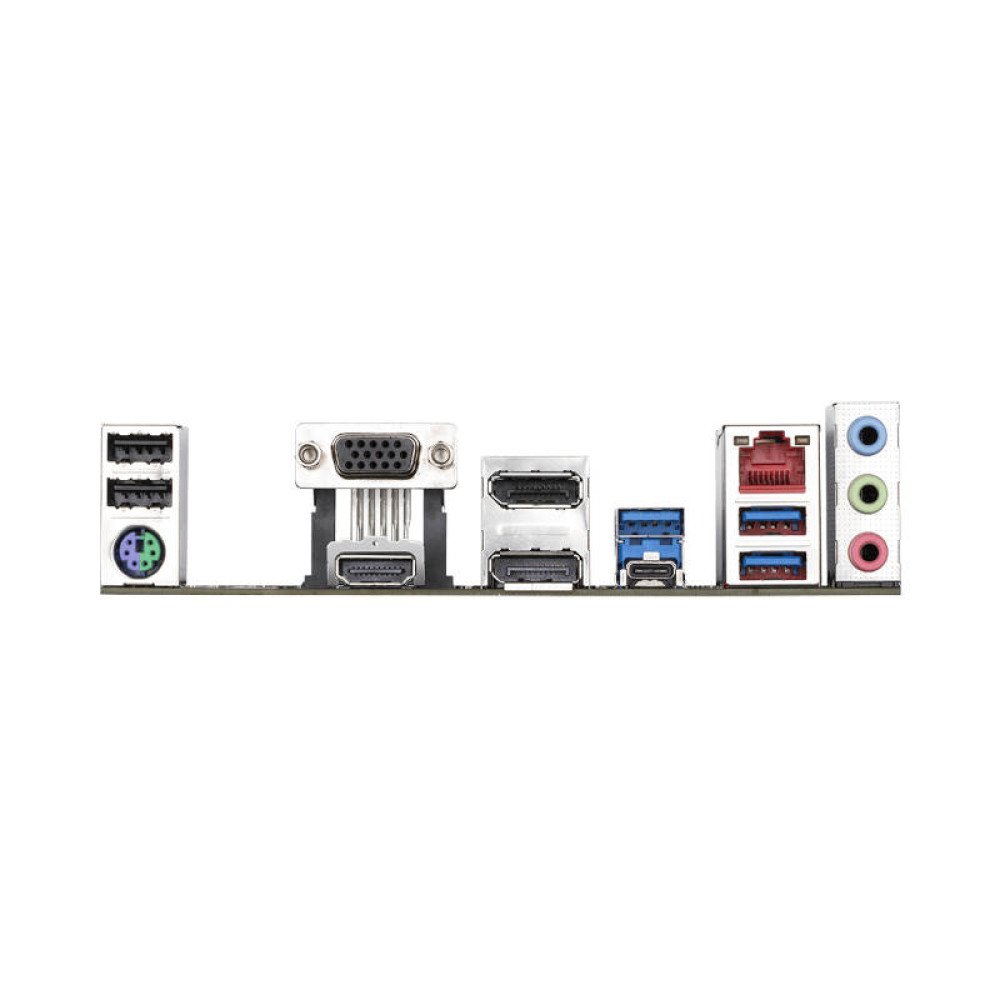

| Back Panel Connectors | 2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x D-Sub port1 x HDMI port2 x DisplayPorts3 x USB 3.2 Gen 1 ports1 x USB Type-C? port, with USB 3.2 Gen 2 support1 x RJ-45 port3 x audio jacks |
| I/O Controller | iTE? I/O Controller Chip |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS | 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus |
| Bundled Software | Norton? Internet Security (OEM version)LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Warranty | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
