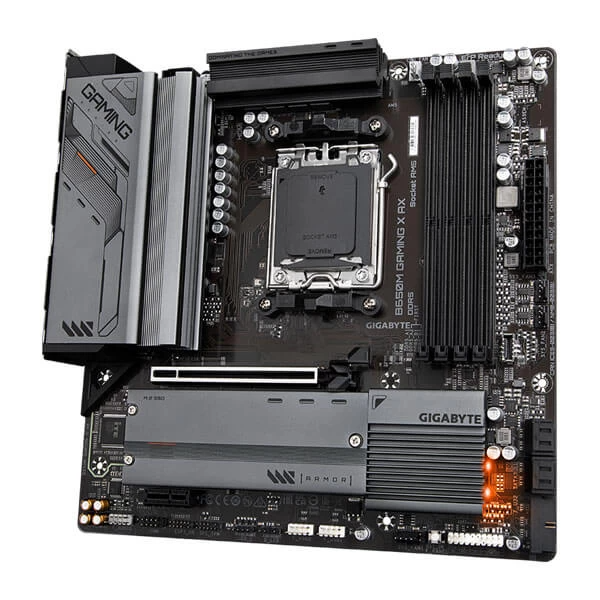

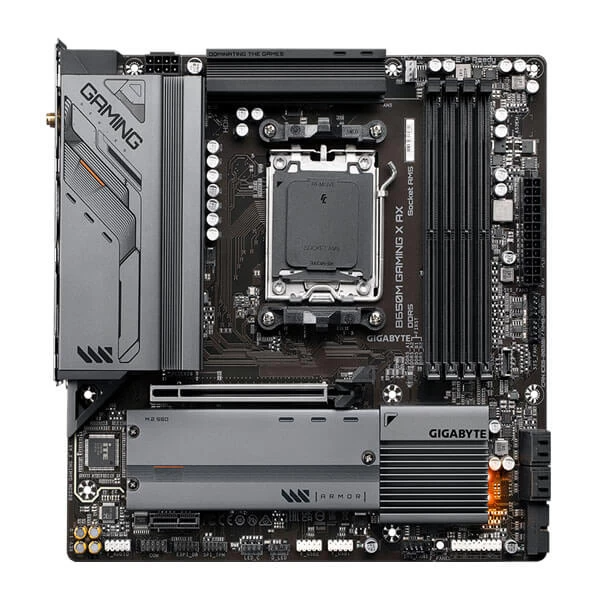

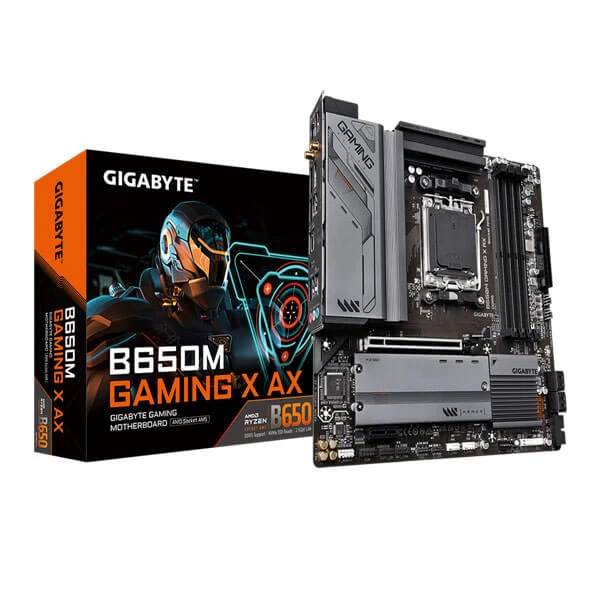

Gigabyte B650M Gaming X AX (Wi-Fi) Motherboard

Original price was: ₹29,700.00.Current price is: ₹15,530.00.

Out of stock

Features:
  • AMD Socket AM5?Supports AMD Ryzen? 7000 Series Processors
  • Unparalleled Performance?Direct 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5?4SMD DIMMs with AMD EXPO? & Intel? XMP Memory Module Support
  • SuperSpeed Storage?2PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard?To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • EZ-Latch?PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks?2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity?2*DP, HDMI, 2*USB-C? 10Gb/s
  • Smart Fan 6?Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus?Update BIOS Without Installing the CPU, Memory and Graphics Card
Specification:
CPUAMD Socket AM5, support for: AMD Ryzen? 7000 Series Processors
ChipsetAMD B650
Memory
  • Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO?) and Extreme Memory Profile (XMP) memory modules
Onboard GraphicsIntegrated Graphics Processor:
  • 2 x DisplayPorts, supporting a maximum resolution of 3840×2160@144 Hz
Support for DisplayPort 1.4 version and HDR.
  • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports.
Audio
  • Realtek? Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
LANRealtek? 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication moduleAMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel? Wi-Fi 6E AX210 (For PCB rev. 1.1)
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion SlotsCPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)Chipset:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage InterfaceCPU:2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)Chipset:4 x SATA 6Gb/s connectors
USBCPU:1 x USB Type-C? port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panelCPU + USB 2.0 Hub:4 x USB 2.0/1.1 ports on the back panelChipset:1 x USB Type-C? port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C? header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

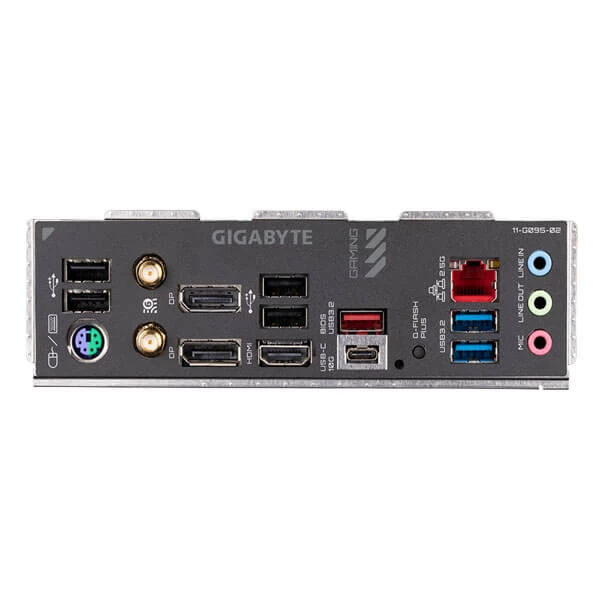

Back Panel Connectors4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 2 x DisplayPorts 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C? port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks
I/O ControlleriTE? I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for GIGABYTE Control Center (GCC)
  • Support for Q-Flash
  • Support for Q-Flash Plus
Bundled SoftwareNorton? Internet Security (OEM version) LAN bandwidth management software
Operating SystemSupport for Windows 11 64-bit Support for Windows 10 64-bit
Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
Warranty3 Years
Note*** Features, Price, Specifications are subject to change without notice.
  • PLATFORM AMD
  • SOCKET AM5
  • Chipset B650
  • SUPPORTED MEMORY TYPE DDR5
  • MAX MEMORY SUPPORT 128 GB
  • FORM FACTOR M-ATX
