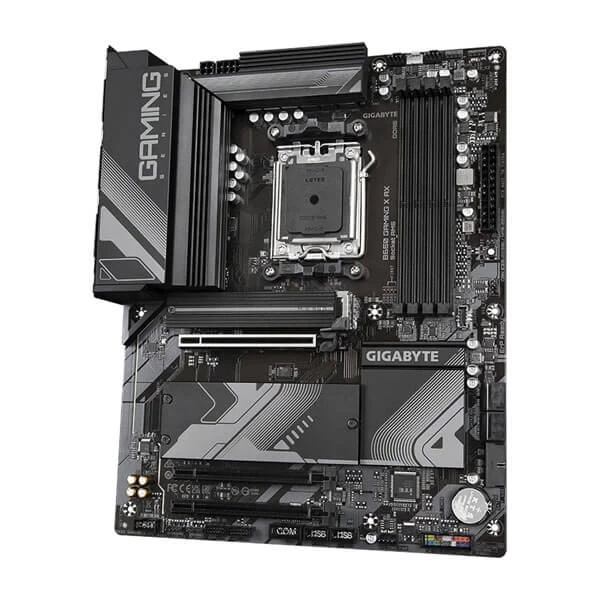

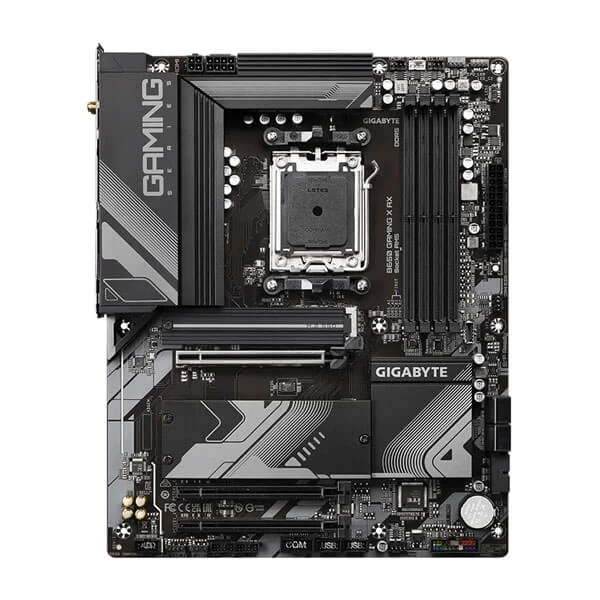

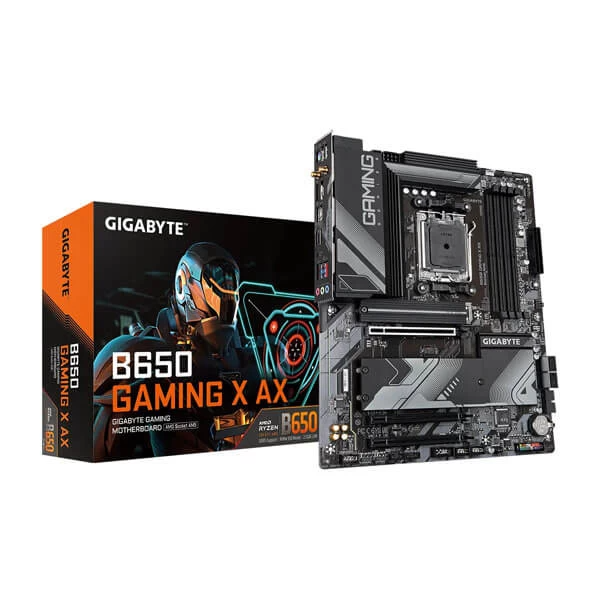

Gigabyte B650 Gaming X AX (Wi-Fi) Motherboard

Add to wishlist
Compare

₹18,900.00 ₹31,500.00

B650 GAMING X AX Supports AMD Ryzen 7000 Series Processors, Dual Channel DDR5 RAM, Advanced Thermal Design & M.2 Thermal Guard, 2.5GbE LAN & Wi-Fi 6E 802.11ax

Features:

  • AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
  • Unparalleled Performance：Direct 8+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage：3PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • PCIe x16 EZ-Latch with Quick Release & Screwless Design
  • Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s, Front USB-C® 20Gb/s
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Specification:

CPU AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
Chipset AMD B650
Memory
  • Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor:

  • 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz

Support for DisplayPort 1.4 version and HDR.

  • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

Support for HDMI 2.1 version and HDCP 2.3.
Support native HDMI 2.1 TMDS compatible ports.
Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots CPU:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Storage Interface CPU:

2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU, M2B_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
4 x SATA 6Gb/s connectors
USB CPU:

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
1 x USB 3.2 Gen 1 port on the back panel

CPU + USB 2.0 Hub:

3 x USB 2.0/1.1 ports on the back panel

Chipset:

1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

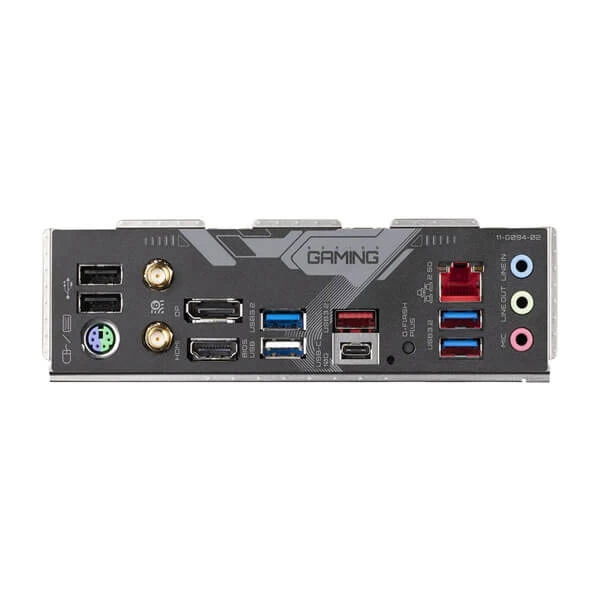

Back Panel Connectors 2 x SMA antenna connectors (2T2R)
1 x Q-Flash Plus button
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  • Support for Q-Flash
  • Support for Q-Flash Plus
Bundled Software
  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
  • PLATFORMAMD
  • SOCKETAM5
  • ChipsetB650
  • SUPPORTED MEMORY TYPEDDR5
  • MAX MEMORY SUPPORT128 GB
  • FORM FACTORATX
