Features:
CREATED ONLY FOR THE BEST
- Unparalleled Hardware & Cooling Capabilities
- Mammoth Water Cooling Support
- Exclusive Tool-Less Technology
- IRIS: Personal LCD Assistant
- ARGB Gen2 ready with MasterPlus+ integration
AIR TO THE THRONE
HAF 700 EVO unveils a new era of thermal efficiency through unique features designed to transcend the standards of contemporary cooling solutions.
Rediscover PC DIY
A form of entertainment, a polished skillset, an exquisite art form, and a way of living.
NO LIMITS
The HAF 700 EVO is capable of housing up to SSI-EEB motherboards (E-ATX), as well as any sized graphics cards in BOTH horizontal and vertical orientations.

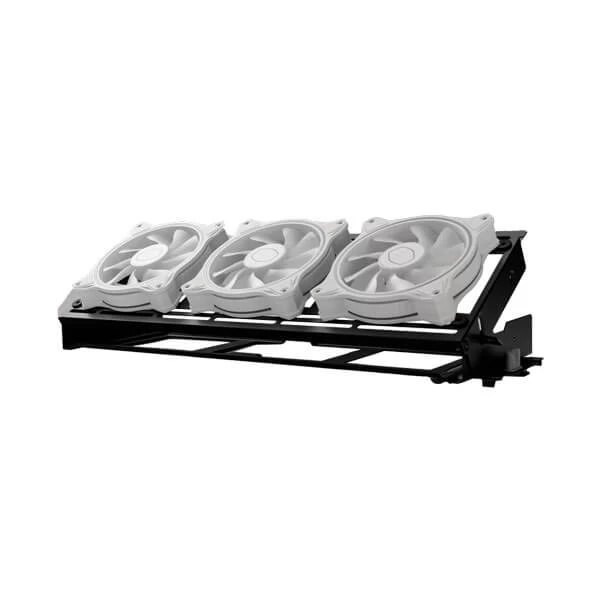

ROTATABLE RADIATOR BRACKET
Two rotatable radiator/fan brackets included out of the box for showcasing cooling components at unique angles.

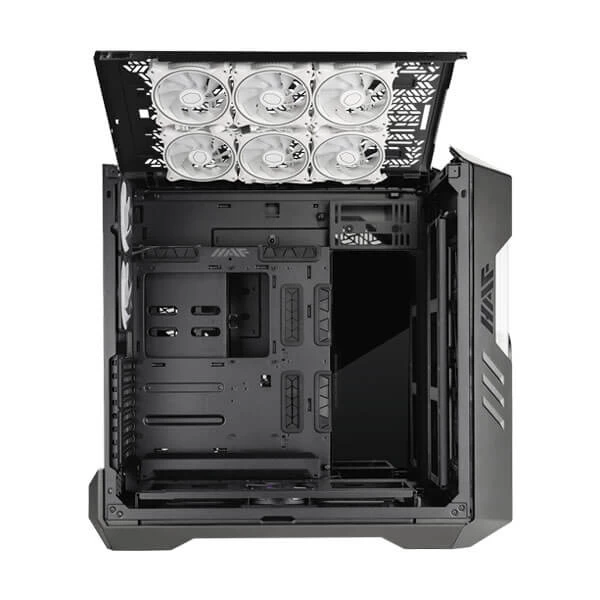

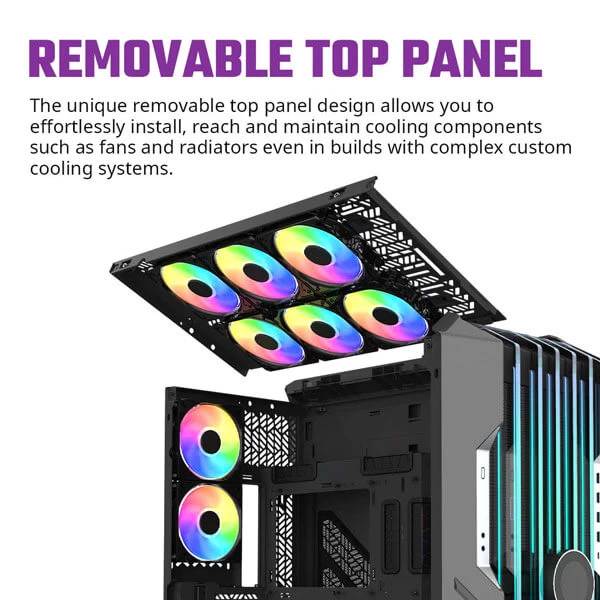

REMOVABLE TOP PANEL
The unique removable top panel design allows you to effortlessly install, reach and maintain cooling components such as fans and radiators even in builds with complex custom cooling systems.
EXCLUSIVE 200MM SICKLEFLOW PWM PERFORMANCE EDITION
HAF 700 EVO comes with dual exclusive 200mm SickleFlow PWM “Performance Edition” fans tailored to strike a balance between performance potential and noise levels.
INTEGRATED 7X PWM & 5X ARGB HUB
Featuring a fully integrated PWM/ARGB hub for effortless cable management and simplified control over ARGB effects and PWM fan speeds.
ARGB GEN2 READY, CONTROLLER INCLUDED
ARGB Gen2 technology allows users to explore full range customization down to the lighting effecting of each individual LED, while remaining compatible with third party devices.
IRIS: CUSTOMIZABLE LCD ASSISTANT
Monitor system and game stats in real time or showcase your favorite video and images. Better yet, customize and create a setup that is truly unique by connecting to MasterPlus+.

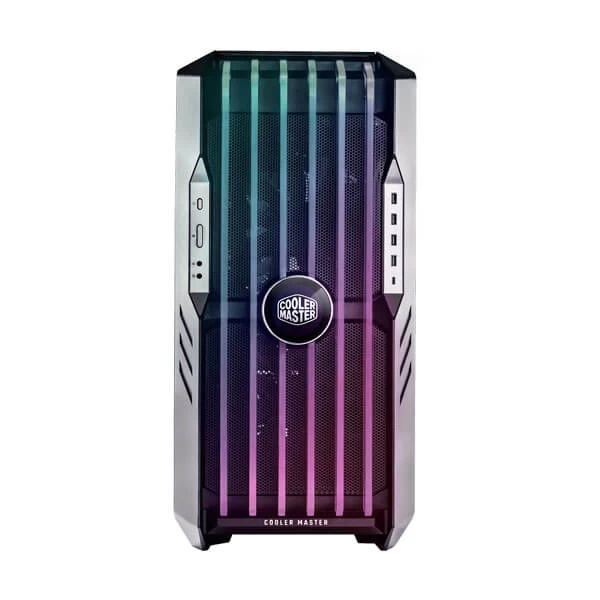

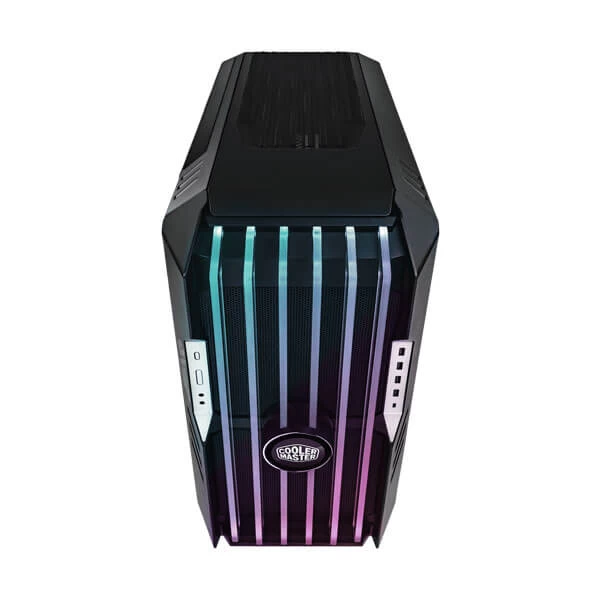

EDGE LIT INTAKE BLADES
Thick, robust ARGB tempered glass Intake Blades create unique, futuristic lighting effects while maintaining the thermal efficiency and performance of mesh that you love.

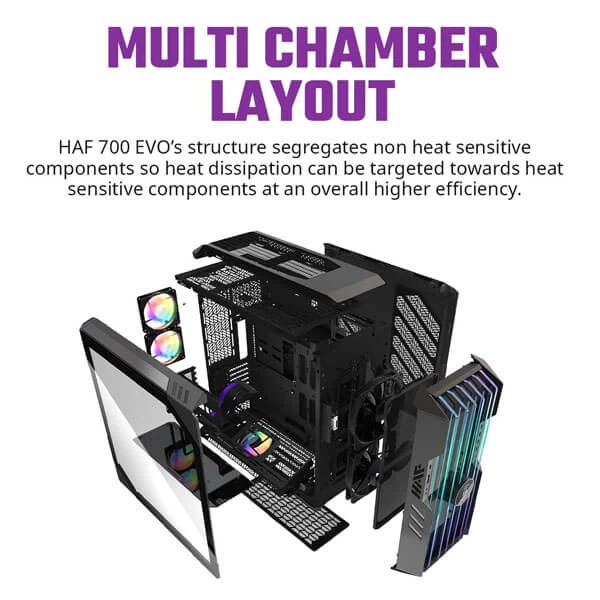

MULTI CHAMBER LAYOUT
HAF 700 EVO’s structure segregates non heat sensitive components so heat dissipation can be targeted towards heat sensitive components at an overall higher efficiency.
VERTICAL GPU HOLDER WITH PCIE 4.0 RISER CABLE
An included vertical graphics card holder with PCIe 4.0 riser cable grant users the flexibility of choice in aesthetic display and airflow performance.

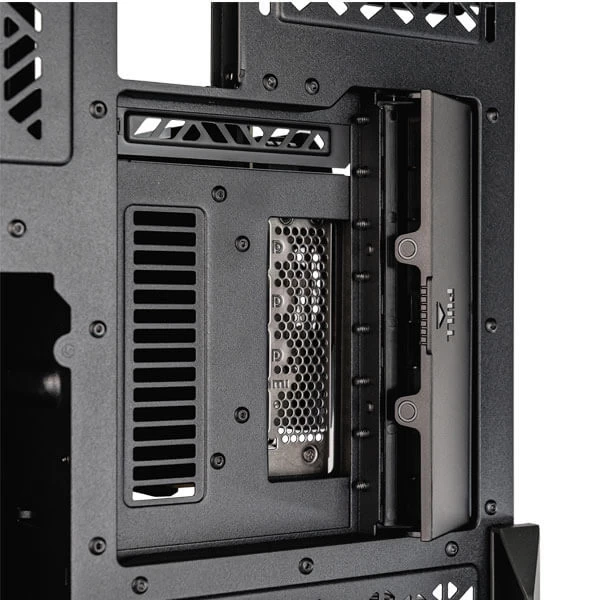

TOOL-LESS VERTICAL GPU MOUNTING (PATENT PENDING)
No more fiddling with screws! HAF 700 EVO features a unique clamping mechanism that allows users to install, remove, and upgrade graphics cards without the need to use any tools.
TOOL-LESS PSU MOUNT
To install PSUs, simply slide the power supply in place and secure it with the two included thumbscrews on the rear end of the case. No tools, no hassle.

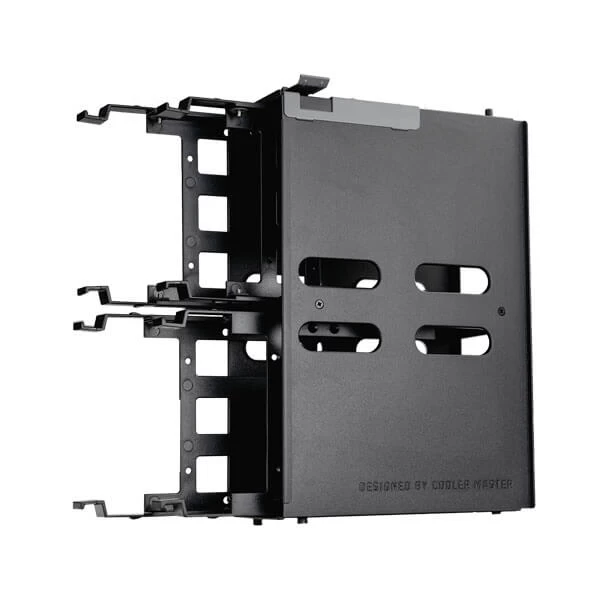

TOOL-LESS HDD CAGE
The rear chambers includes a tool-less, swiveling drive cage that allows users to quickly access drives with ease.
TOOL-LESS MULTIFUNCTION BRACKETS (HDDS, SSDS, PUMPS, RESERVOIRS)
Multifunction, repositionable brackets can be used to mount SSDs, HDDs, or pumps/reservoirs for liquid cooling.
INFINITY MIRROR
The Infinity Mirror allows you to turn extra clearance in the build into your personal Hall of Fame.
Specification:
Model Number | H700E-IGNN-S00 |
Exterior Color | Titanium Grey |
Materials – Exterior | Mesh, Steel, Plastic |
Materials – Left Side Panel | Tempered Glass, Steel |
Dimensions (L x W x H) | 556 x 279 x 540 mm (Body Size), 666 x 291 x 626 mm (incl. Protrusions) |
Motherboard Support | Mini ITX, Micro ATX, ATX, E-ATX, SSI CEB, SSI EEB |
Expansion Slots | 8 |
5.25″ Drive Bays | N/A |
2.5″ / 3.5″ Drive Bays (combo) | 12 |
2.5″ Drive Bays | 12 |
I/O Panel – USB Ports | 1x USB 3.2 Gen 2 Type C, 4x USB 3.2 Gen 1 (3.0) |
I/O Panel – Audio In / Out | 1x 3.5mm 4 Poles Audio Jack, 1x 3.5mm Mic Jack |
I/O Panel – Other | 1x LED Controller A1 (ARGB Gen 2), 1x ARGB/PWM Hub |
Pre-installed Fans – Front | 2x SickleFlow PWM Performance Ed. 200mm |
Pre-installed Fans – Rear | 2x SickleFlow PWM ARGB 120mm |
Pre-installed Fans – Bottom | 3x 120/140mm |
Fan Support – Side | 4x 120mm / 3x 140mm |
Radiator Support – Top | Up to 2x 360mm / 1x 420mm |
Radiator Support – Front | Up to 420/360mm |
Radiator Support – Rear | Up to 240mm |
Radiator Support – Bottom | Up to 420/360mm |
Radiator Support – Side | Up to 480/420mm |
Clearance – CPU Cooler | 166mm / 6.53 inch |
Clearance – PSU | 200mm / 7.87 inch |
Clearance – GFX | 490mm / 19.29 inch |
Cable Routing – Behind Motherboard Tray | 90-101mm |
Additional Included Accessories | Universal Graphics Card Holder Kit V2 |
Dust Filters | Front, Bottom, Side |
Power Supply Support | Bottom Mount, ATX |
Special Note | For regular 30mm thick radiators, for thicker please reference compatibility sheet |
Series | HAF Series |
Size | Full Tower |
Warranty | 2 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
- CABINET SIZEFULL-TOWER
- MAX GPU LENGTH490mm
- MAX 3.5″ HDD12
- MAX 2.5″ SSD12
- EXPANSION SLOTS8
- MAX RADIATOR SUPPORT420mm
- MAX FAN SUPPORT18
- FRONT PANELMESH
- LEFT PANELTRANSPARENT
- CUSTOM COOLER COMPATIBLEYES
- MOTHERBOARD SIZEE-ATX
- USB SUPPORTTYPE-C
- WARRANTY2 YEARS
