- SERIESOBSIDIAN SERIES
- TYPEFULL TOWER
- 5.25″ BAYS3
- 3.5″ BAYS6
- 2.5″ BAYS10
- EXPANSION SLOTS9
- MAX RADIATOR SUPPORT360
- MAX FAN SUPPORT9
- COLORBLACK
- SIDE PANELTRANSPARENT
Specification
|
Color |
Black |
|
Case Form Factor |
Full-Tower |
|
Dimensions |
560mm x 235mm x 546mm |
|
Case Motherboard Support |
Mini-ITX, MicroATX, ATX, E-ATX, XL-ATX |
|
Maximum GPU Length |
450mm |
|
Maximum CPU Cooler Height |
170mm |
|
Maximum PSU Length |
220mm |
|
Case Expansion Slots |
9 |
|
Case Drive Bays |
(x3) 5.25in |
|
Case Material |
Brushed Aluminum and Steel |
|
Case Power Supply |
ATX (not included) |
|
External Connections |
(x2) USB 2.0 |
|
Fan Mount Locations |
Front: (x2) 120/140mm |
|
Fans Included |
Front: (x2) 140mm |
|
Radiator Mount Locations |
Front: 240/280mm |
|
Compatible Corsair Liquid Coolers |
H55, H60, H75, H80i, H90, H100i, H105, H110 |
|
Warranty |
2 Years |
|
Note |
***Features, Price and specifications are subject to change without notice. |
Features

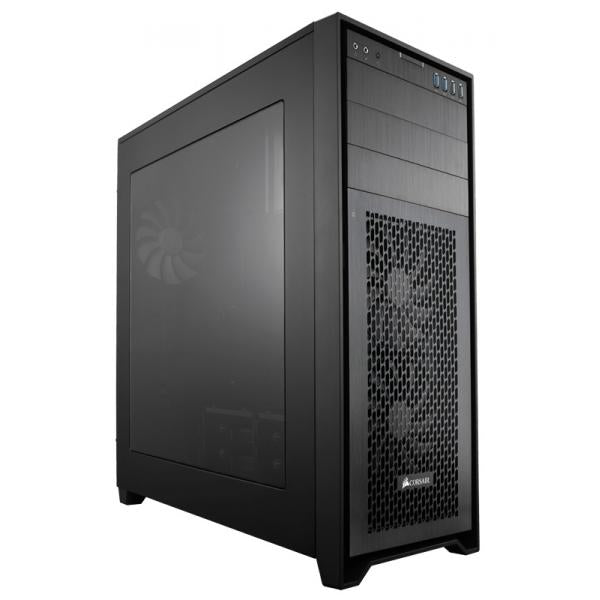

The high airflow full tower Obsidian Series case for great-looking high performance PCs
If you’re building a high-performance full tower PC system, Obsidian Series 750D Airflow Edition is a great start.
It combines generous expansion flexibility, excellent air or water cooling capabilities, and an interior optimized for fast and easy builds and upgrades.
The exterior is built from solid steel and brushed aluminum for a clean, elegant look.
Minimalist style, maximum potential
The 750D Airflow has a clean, elegant exterior that dispenses with arbitrary plastic add-ons in exchange for the beauty of brushed aluminum and solid steel. This rigid, rugged exterior surrounds a frame that has ample room for high-performance components and the sophisticated cooling you’ll need if you’re going to push those components to their limits.

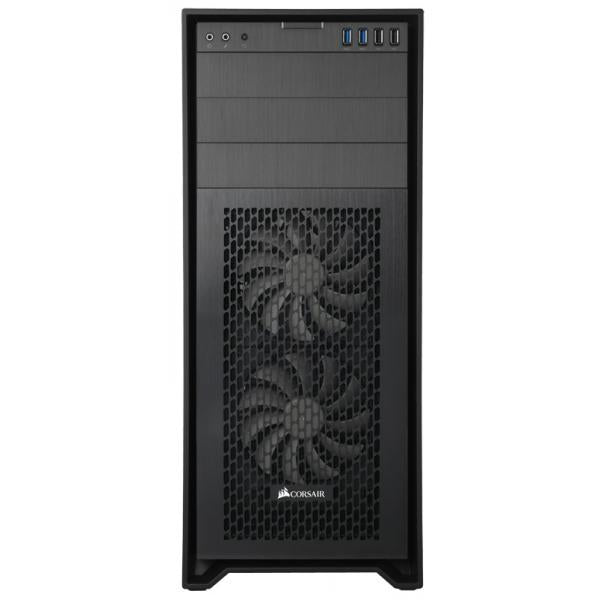

High airflow front mesh design

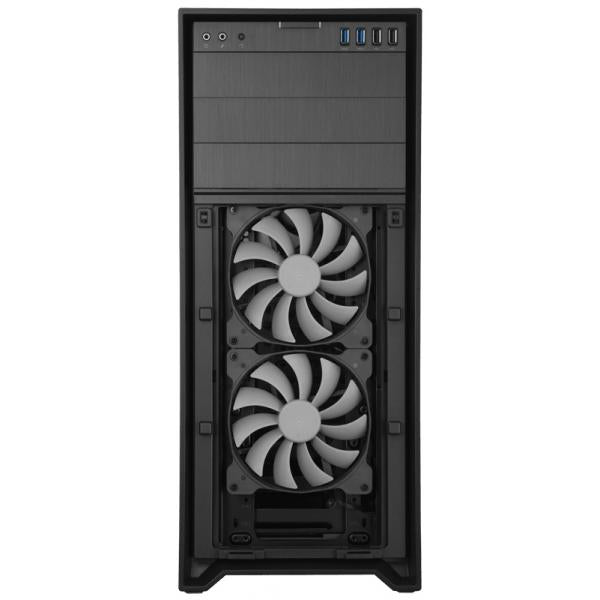

The front panel is what makes the 750D Airflow different than the original 750D. Dual 140mm front intake fans and a low-resistance mesh panel provide quiet, efficient air cooling performance for GPUs and DRAM.

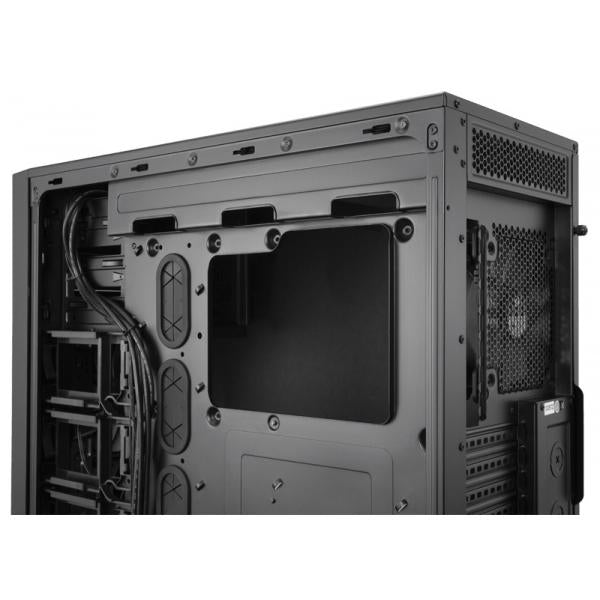

Modular drive cage system
The tool-free drive bays can be moved and removed, so you can use only what you need for your particular storage requirements. In turn, you’ll get increased space for components and better airflow potential.
Fast and straightforward builds
Smart design features and an optimized interior make this a true builder’s PC case. That’s because we believe building a system should be straightforward, trouble-free, and even fun.
